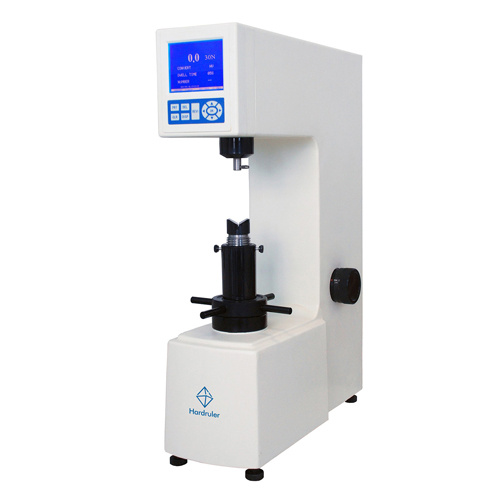

Digital Rockwell Hardness Tester (HR-150D)
Usage
Model HR-150D digital Rockwell hardness tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It is widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Features
1. Digital LCD reading of 12 regular Rockwell scales
2. Conversion to other hardness scales, such as Vickers and Brinell
3. Menu operated LCD screen with many functions such as Conversion, Load cycle indication
4. Integrated printer for test result and statistics, also can connect to PC communication through RS-232C cable
5. Accuracy, Reliability and durability at cheap price
Technical data| Specifications |
| Product name | Digital Rockwell Hardness Tester |
| Model | HR-150D |
| Rockwell Scales | A, B, C, D, E, F, G ,H, K, L ,M, R |
| Display conversion to | HV, HB, HR scales |
| Preload | 10kgf(98.07N) |
| Test loads | 60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N) |
| Measuring Range | 20-88HRA, 20-100HRB, 20-70HRC |
| Dwell time | 1-60S |
| Hardness indication | Digital LCD Display |
| Resolution | 0.1HR |
| Loading Control | Automatic |
| Data Output | RS-232C and Built-in Printer |
| Max. Height of Specimen | 175mm |
| Instrument Throat | 165mm |
| Dimension (L*W*H) | 520 x 215 x 700mm |
| Packing Dimension | 630*440*960 |
| Gross/Net Weight | 120Kg/90Kg |
| Power supply | 110V/220V, 50HZ |
| Accuracy | EN-ISO 6508 , ASTM E-18, GB/T230.2 |
| Standard delivery |
| Main Unit | 1pcs |
| Thermal Printer | 1pcs |
| Data-output RS-232C | 1pcs |
| Cone Diamond Indenter | 1pcs |
| Ø 1.5875 Ball Indenter | 1pcs |
| Ø1.5875mm Steel Ball | 1pcs |
| Large Flat Anvil | 1pcs |
| Small Flat Anvil | 1pcs |
| V-notch Anvil: | 1pcs |
| Hardness Test Block (85-100) HRB | 1pcs |
| Hardness Test Block (57-70) HRC | 1pcs |
| Hardness Test Block (20-33)HRC | 1pcs |
| Adjustable feet | 4pcs |
| Accessories Case | 1pcs |
| Anti-dust Cover | 1pcs |
| Installation & user manual | 1pcs |
| Prod Model: |
HR-150D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Digital Rockwell Hardness Tester |
| Model No.: |
Hr-150d |
| Rockwell Scales: |
a, B, C, D, E, F, G ,H, K, L ,M, R |
| Display Conversion To: |
Hv, Hb, Hr Scales |
| Preload: |
10kgf(98.07n) |
| Test Loads: |
60kgf(588.4n), 100kgf(980.7n), 150kgf(1471n) |
| Measurement Range: |
20-88hra, 20-100hrb, 20-70HRC |
| Dwell Time: |
1-60s |
| Hardness Indication: |
Digital LCD Display |
| Resolution: |
0.1hr |
| Type: |
Rockwell Hardness Tester |
| Application: |
Metal |
| Standard: |
GB/T |
| Measuring Range: |
a, B, C, D, E, F, G, H, K, L, M, R |
| Warranty: |
18 Months |
| Rated Voltage: |
110V/220V |
