Product Specifications
| Prod Model: |
HRMS-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Digital Rockwell Hardness Tester |
| Preliminary Test Force: |
29.4n (3kgf) |
| Total Test Force: |
147n(15kgf) 294n(30kgf) 441n(45kgf) |
| Total Test Force Dwell Time: |
2-60s |
| Hardness Indication: |
Digital |
| Max Height Of Specimens: |
175mm |
| Type: |
Rockwell Hardness Tester |
| Measuring Range: |
HRC |
| Application: |
Metal |
| Standard: |
ASTM |
Product Description

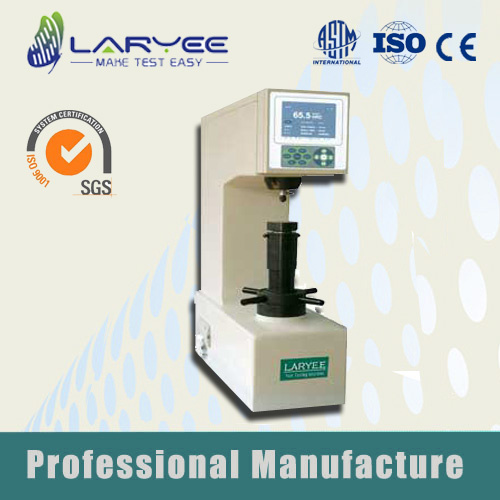

Digital Superficial Rockwell Hardness Tester
Introduction of Digital Superficail Rockwell Hardness Tester (HRMS-45)
Rockwell hardness test is a simple instrument to test the hardness value of hard metals, carburized steels, quenched steels, hard cast irons, mild steels, Al-alloys, Cu-alloys and malleable irons according to Rockwell Principle according to ISO 6508 and ASTM E18. It measure the depth difference between the primary and testing load and convert the depth difference to the hardness value. These machines can be operated semi-automatically. They are essential testing instruments for quality testing section, university and college, research institution and industrial laboratory.
Model HRMS-45 is superficial Rockwell test scales N & T (15/30/45kgf) with digital indicator and motor control loading. Hardness value convert to HRA, HRB, HRC, HV, HB
Specification
| Model | HRMS-45 |
| Preliminary test force | 29.4N (3Kgf) |
| Total test force | 147N(15Kgf), 294N(30Kgf), 441N(45Kgf) |
| Total test force dwell time | 2-60S |
| Hardness indication | Digital |
| Max height of specimens | 170 mm |
| Max width of specimens | 160mm |
| Dimension (DXWXH) | 500mm*150mm*750mm |
| Net Weight | 80Kg |
| Power Supply | AC220V 50/60HZ |
Digital Superficial Rockwell Hardness Tester
