Product Specifications
Prod Model: |
LCA320T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Digital Tilt Meter |
Certificate: |
ISO9001:2000 Approved |
Measuring Rang: |
±1~±90° Optional |
Voltage Input: |
0~5V |
Size: |
L55*W37*H24mm(Customized) |
Wide Temperature Working: |
-40~+85 |
Resolution: |
0.1 |
Protection Class: |
IP67 |
Package: |
Carton Case |
Type: |
Dual-Axis Inclinometer Sensor |
Product Description

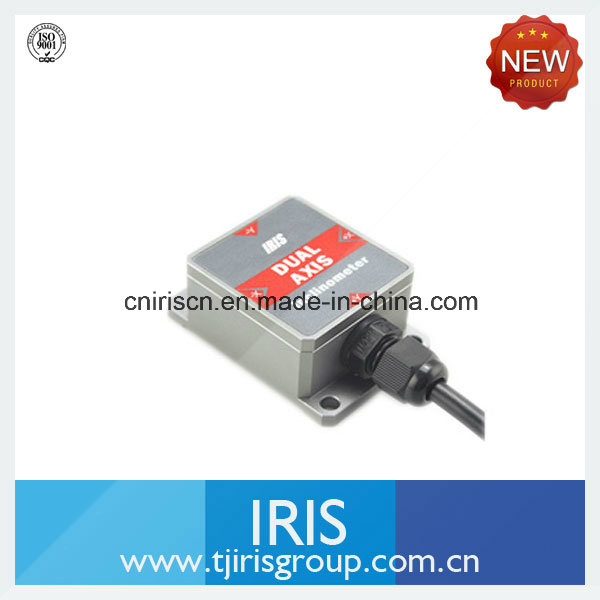

Digital tilt meter low cost inclinometer with Dual-axis voltage output
General Description :
The LCA320T series inclinometer, developed by IRIS Company for market with special requirement on volume and cost, is a small volume low cost MEMS dual-axis tilt sensor. Due to the latest built-in MEMS technology inclination unit, it achieves small size, low cost, consistance and stability, capable of long-term working in the industry harsh environment. It is a cost-effective product.
This product adopts non-contact measuring principle, outputing real-time current attitude angle, simple to use, no need to find the relative sides of a angle. It is a ideal choice for Industrial automation control and platform measuring.
Technical Data
Parameters | Conditions | LCA320T-10 | LCA320T-30 | LCA320T-60 | LCA320T-90 | UNIT |
Measuring range | | ±10 | ±30 | ±60 | ±90 | ° |
Measuring axis | | X,Y | X,Y | X,Y | X,Y | |
ZERO output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
Resolution | | 0.1 | 0.1 | 0.1 | 0.1 | ° |
Absolute accuracy | | 0.1 | 0.2 | 0.3 | 0.4 | ° |
Long termstability | | <0.5 | <0.5 | <0.5 | <0.5 | |
Zero temp. coefficient | -40~85° | ±0.008 | ±0.008 | ±0.008 | ±0.008 | °/ºC |
Sensitivity temp. coefficient | -40~85° | ≤150 | ≤150 | ≤150 | ≤150 | ppm/ºC |
Power on time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
Response time | | 0.05 | 0.05 | 0.05 | 0.05 | s |
Response frequence | | 1~20 | 1~20 | 1~20 | 1~20 | Hz |
Electromagnetic compatibility | According to EN61000 and GBT17626 |
MTBF | ≥45000 hours/times |
Insulation Resistance | ≥100M |
Shockproof | 100g@11ms,3Times/Axis(half sinusoid)) |
Anti-vibration | 10grms,10~1000Hz |
Protection glass | IP67 |
Cables | Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables4*0.4mm2 |
Weight | 90g(without cable) |
Application:
Satellite positioning Search
Rail-mobile monitoring
engineering mechanical measurement of dip angle
oil-well drilling equipment
Radar detection of vehicle platform
Underground drill posture navigation
Gun Barrel angle measurement in early shooting
Based on the angle direction measurement
Satellite communications vehicle posture detection
Shield pipe jacking application
Ship's navigation posture measurement
Geological equipment inclined monitoring
