Product Specifications
Prod Model: |
timer |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port: |
Ningbo, Shanghai, Other |
Delivery Time: |
20-25 Days |
Size: |
Miniature |
Theory: |
Time Relay |
Type: |
Electric Parameter Relay |
Usage: |
Lathe Relay |
Product Description
CLASSIFICATION

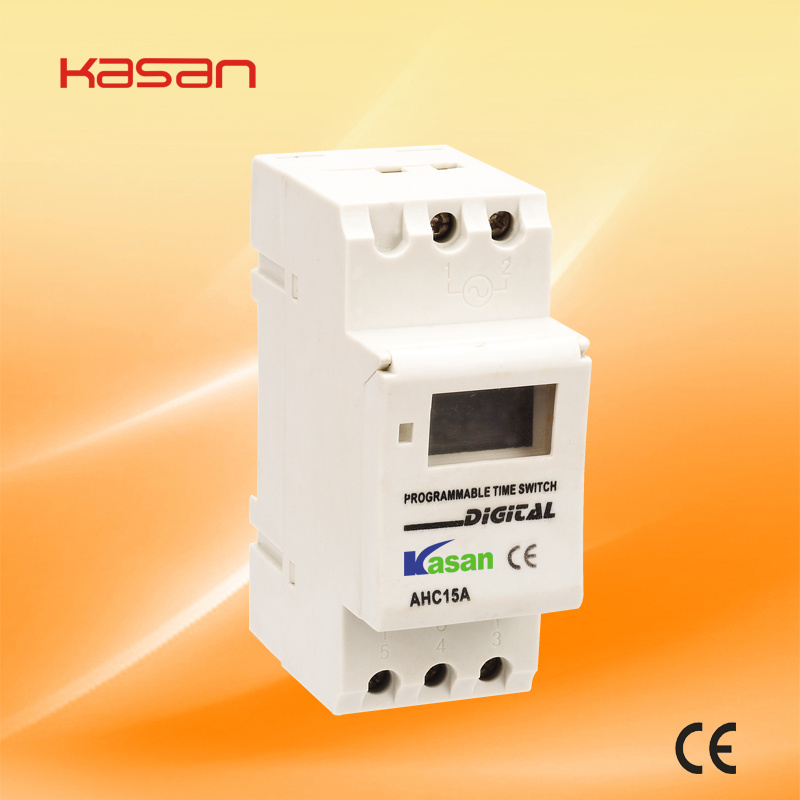

TIMER digital time switch
Weekly programmable
MODEL
AHC15A
DIMENSIONS (mm)
82*36*66
FULL TIMING RANGE
Per week or per day cycle
RATED VOLTAGE
AC 110, 220-250V 50/60Hz 85%-110%
CONTACT CAPACITY
16A 110, 220-250V AC
CONTACT FORM
1P
ACCURACY
≤ 2S/DAY
EXPECTANCY DISPLAY
LCD
MOUNTING FORM
Front-panel, DIN rail 35mm
PROGRAMMABLE
10 times / week or day 10 on 10 off
MOUNTING
DIN rail 35mm or other
Model No: AHC15A |
Product name: Weekly programmable Electronic Timer |
Operating Voltage: 220~240V AC, 50Hz/60Hz, 85%~110% |
Power Consumption: 4.5VA |
Ambient Temperature: -10~+50º C |
Accuracy: ≤ 2 s/day 25º C |
Minimum Setting Unit: 1 min |
Time setting Range: 1 min~168 hours |
Contact Capacity: AC 250V, 12A |
Contact Form: 1 Z |
Working reserve time: 48 hours charged can lasts 15 days |
Expectancy Display: LCD |
Mounting Form: Front-panel, DIN rail |
Life: | Electrical ≥ 10 5 Times |
| Mechanical ≥ 10 5 Times |
Operating Mode: -20º C~+50º C |
Programmable: 10 Time/week or day |
Full Timing Range: Per week or per day cycle |
