Product Specifications
| Prod Model: |
Sud50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: |
Beijing |
| Delivery: |
Within 3 Workdays Upon Receipt of Full Payment |
Product Description
Specifications
SUD50 is integrated with international advanced digital integration and new EL display technology.

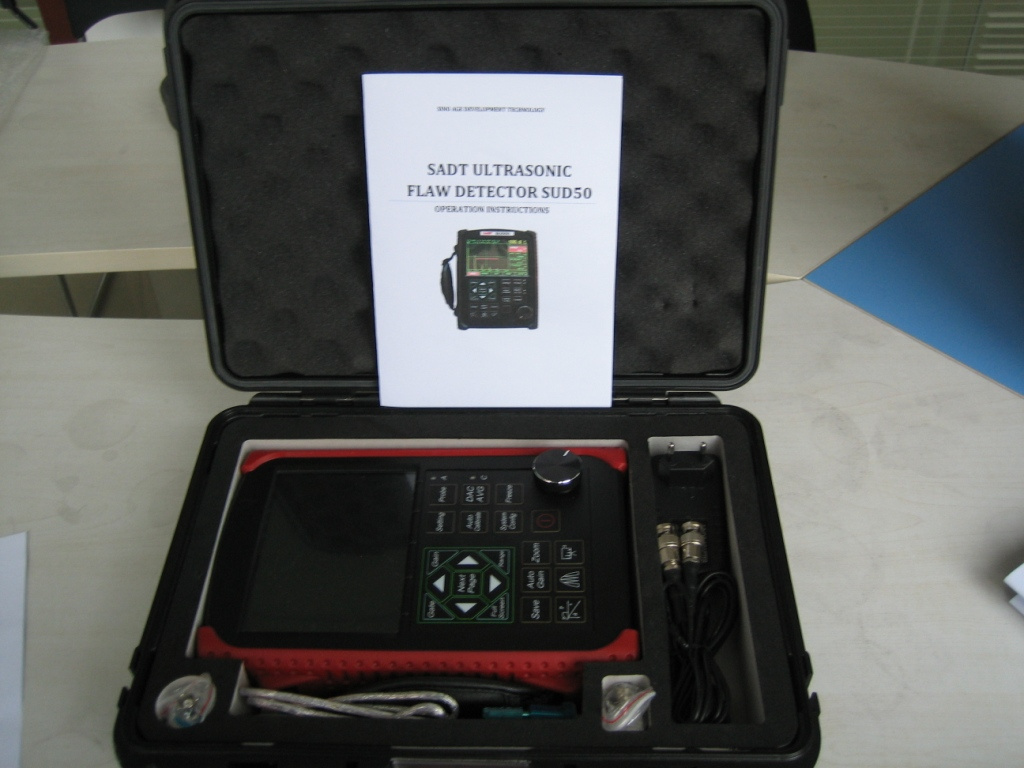

Details of the Ultrasonic Flaw Detector SUD50
Description:
SUD series ultrasonic flaw detectors are portable, microprocessor-based instruments that are suitable for both shop and field use. They are integrated with international advanced digital integration and new EL display technology, are smart Digital Ultrasonic Flaw Detector propelled by SADT.
SUD series flaw detectors have almost all functions to meet requirements of professional application for nondestructive testing.
SUD50 is more portable model.
Key Features:
Automated gain and gain scan;
Peak Hold and Peak Memory;
DAC, AVG, B scan, AWS
TCG curve
High-speed capture and very low noise
Automated make video of test process and play. Use USB flash disk, the length of video is unlimited.
High contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles
Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, Ø );
Automated switch three staff gauge (Depth d, level p, distance s);
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity;
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated 6dB DAC functions;
100 independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 1000 A graph
Big memory of 300 A graph and 30000 thickness values
Li battery, continue working time up to 10 hours;
The embedded software can be online updated;
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar;
Two gates setting and alarm indication;
Gate and DAC alarm;
Automated measurement of nodularity and vermicularity
RS232/USB port, Communication with PC is easy
Powerful pc software and reports can be export to excel
Pulse parameteres can be adjusted
Dormancy and screen savers
Solid metal housing (IP65)
