Product Specifications
| Prod Model: |
RVDV-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

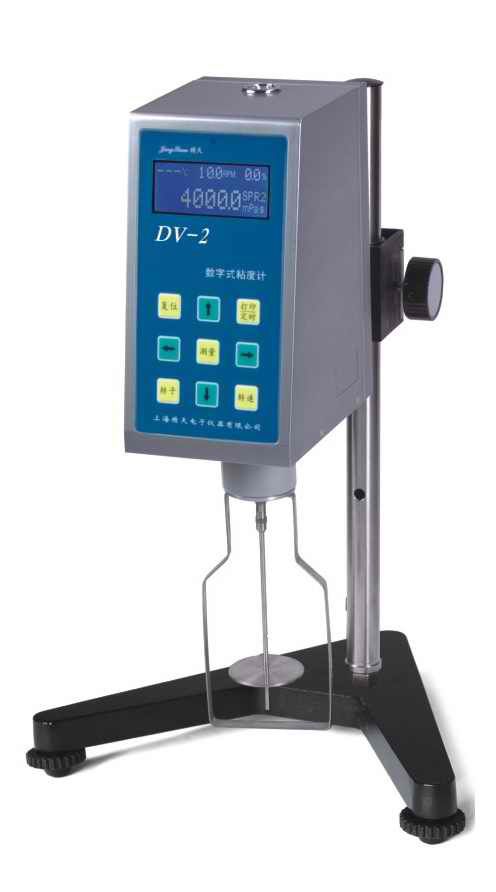

Digital Viscometer LVDV-2
The LVDV-II+ PRO Digital Viscometer combines traditional Brookfield accuracy, reliability and versatility with the advantages of continuous sensing, temperature measurement and data output to PC or printer. When controlled by PC, the DV-II+ PRO becomes a Rheometer with variable speed capability from 0.01 to 200 rpm. This instrument is the preferred choice for many Brookfield customers.
Features And Benefits
Continuous display of: Viscosity (cP or mPa·s), Temperature (°C or °F),
Shear Rate, Shear Stress, % Torque, Spindle
Torque measurement accuracy: 1% of full scale range
Repeatability: 0.2% of full scale range
54 selectable speeds provide superior range of viscosity/shear measurements
for use in stand-alone operation
Download custom programs with DV Loader
software (included)
Automate program control by PC running optional Rheocalc® software; speed control from 0.01
to 200 rpm
Automatic data collection and historical comparison with optional Wingather™ software
Built-in RTD temperature probe for sample monitoring
Easy-to-use keypad for simple selection of test parameters
Auto-zero function to ensure precision torque measurement
Customizable options
Parallel printer, serial RS-232 and analog voltage outputs
Compatible with all Brookfield accessories
NIST traceable viscosity standards available
Speicification :
Model |
RVDV-2 |
Measurement range |
40-80M mPa.s |
Rotor specification |
R2 ,R3 ,R4,R5,R6,R7 |
Rotating speed of rotor |
0.1-200 Monpolar shift |
Measurement Accurarcy |
±1%(newtonian liquid) |
Repeatability |
±0.5% |
power |
AC 220V±10% 50Hz±10% |
Working condition: |
temperature 5-35 degree
Relative humidity no more than 80% |
Outline Dimension |
370×325×280 mm |
Net Weight |
6.8kg |
Movel professional supply electronci balance 0.1mg, 1mg 10mg, 0.1g 1g etc. With magnetic force
And moisture balance 1mg 10mg.
Digital viscometer
Density balance,
pH meter
And hydrostatical electronic balance.
Glassware and glass flask for laboratory
At the same time we also export
Medical equipments and hospital equipments
Laboratory equipments, student instrument
Educational apparatus, like microscope and steam sterilizer
etc.
Movel supply products, quality is first, and we have professional engineer test products before export. And guarnteen all products movel supply guarnteen is 2 years. And movel is always is honest with you. We do what we do.
NEW YEAR 2014, HOPE WE CAN DO WELL with YOUR TRUST
