Product Specifications
| Prod Model: |
XK319A-D21P |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
Product Description

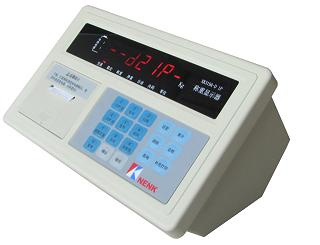

XK319A-D21(P) weighing indicator can connect 18-channel digital load cell, AC/DC power supply, flame-related ABS housing, high strength, strong corrision resistance, optional communication interfaces, widely applied in electronic truck scale, electronic floor scale, electromagnetic scale etc weighing system.
Basic functions:
ABS housing, high strength, strong corrosion resistance
7 bits highlight LED display, 10 status indication
18 keys, make the operation more convenient and clear
Can connect to 18 digital load cells
Auto/manual angle correction
Save 500 tare weight records and 1500 weighing records
Achieve once storage print, twice storage (tare) print, preset the tare print
Optional interface, including RS-485, RS-232, 20mA current loop output, connect to PC and scoreboard
AC/DC power supply, switch automatically, external 12V rechargable battery
XK319A-D21P external wide line printer, XK319A-D21P with built-in micro printer, set parameters for printer
Optional setting for print format, content and print automatically
Automatictri-division(selectable)
Technological Parameters:
Accuracy class: 3, n = 3000
Load cell: Digital load cells can be connected to 18
Load cell Communication: RS-485 bus
Load cell for the bridge voltage: DC 12V, 2A drive capability
Display: 7 LED indication, 10 status indication
Buttons: Thin film inductive, 10 numeric keys, 8 function keys
Communication mode: RS232, RS485 bus, 20mA current loop
Baud Rate: 1200/2400/4800/9600bps optional
Divisions: 1/2/5/10/20/50/100 adjustable
Working environment: Temperature -20 ~ +50 º C
Relative humidity ≤ 85% RH
Power: AC 220V/50Hz/0.75A or DC12V/2A
Power consumption: ≤ 20W
Exterior Dimensions: Length × Width × Height = 310 × 270 × 170mm
Hebei Nenk Instruments Co., Ltd. specialize in researching&development and manufacturing weighing indicator(weighing display): XK319A series, Applied in floor scale, \weighbridge\ truck scale and other static weighing system. And our product family including digital weighing indicator\weigh bridge\floor scale\crane scale \scoreboard \digital load cell\Junction Box etc.
Our products are manufactured under ISO9001: 2000, and some of them got the certificate of OIML.
Warmly welcome importers, distributors and manufacturers to cooperate with us, especially distributors.
Our motto is customer satisfaction. We focus on client satisfaction and customized product to suit the each client's requirement
