Product Specifications

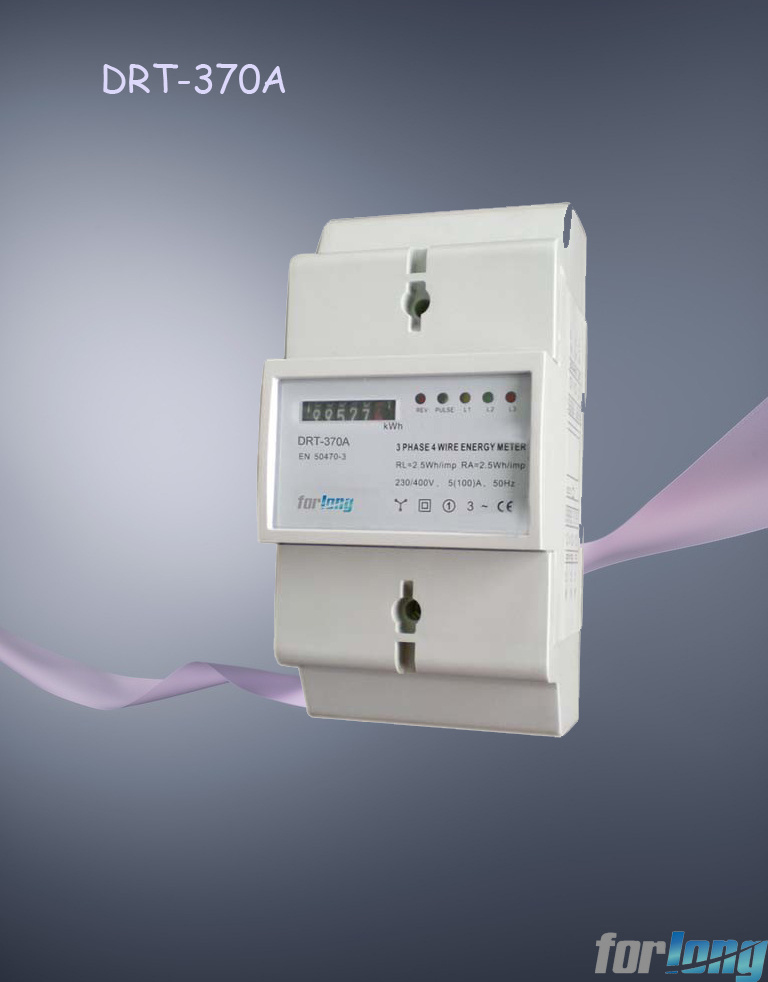

| Prod Model: |
DRT-370A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
General Installation Meter |
| Power Source: |
AC Meter |
| Theory: |
Electronic Meter |
| Usage: |
Standard Electric Energy Meter |
Product Description
DRT-301A
Three phases electricity Energy meter for DIN-rail mounting (four modules).
Active energy measurement in three phases four wires alternating current circuits. Displayed by mechanical register.
Standard compliance
GB/T17215-2002
IEC62053-21: 2003
Features
DIN rail mounting
Wide rage current measurement
SO output
High accuracy, stability,
Small size, light weight
Low power consumption
Easy installation
Nominal voltage (Un) 230/400V AC (3~)
Operational voltage 161/279 - 300/520V AC (3~)
Insulation capabilities:
- AC voltage withstand 4KV for 1 minute
- Impulse voltage withstand 6KV - 1.2µ S waveform
Starting current (Ist) 0.04A
Transitional current(Itr) 1.0A
Minimum current 0.5A
Reference current (Iref) 10A
Maximum current (Imax) 100A
The current measuring range 0.5-10(100)A
Peak current withstand 3000A for 0.01s
Operational frequency range 50Hz ± 10%
Internal power consumption ≤ 2W / 10VA per phase
Test output flash rate (PULSE LED) 400imp/kWh
Pulse output rate 400imp/kWh
Shanghai Fengyilong Electronic Co., Ltd. is an experienced manufacturer of electronic meters, and has its headquarter in Shanghai, China and subsidiary factory in Jiangsu province. As a member of National Instrument & Meter Associations, we have involved in drafting our National Standards for instruments & meters.
We are an ISO9001 company, we have very good quality control mechanism on production process. We have our dinrail energy meter, prepayment energy meter, socket energy meter CE approved.
We have our own import and export rights and possess skillful import & export operating persons as well.
Here we are highly honored to enter into your business line, so we heartily wish to serve you with our good products. We also hope that we can join our hands to work hard for our mutual future.
You are welcome to visit our showroom.
