Price: | Negotiable/Set |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Paypal,Western Union |

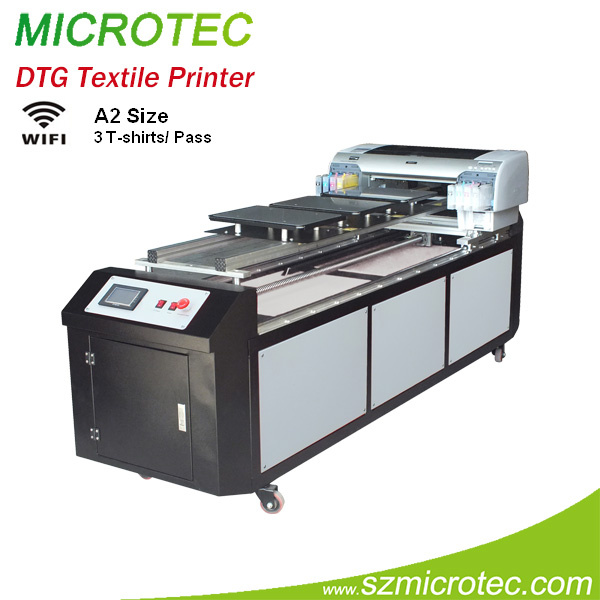

Model: | MT-FPM2-TS | |
Ink & Material | Ink Color | CMYK + WWWW or CMYK x 2 |
Ink Bottle Volumeq | 220ml*8 color | |
Ink Type | Textile ink | |
Ink Cost | White color t-shirt, USD0.6-0.9/pc / 40x40cm Dark color t-shirt, USD1.1-1.5/pc / 40x40cm | |
Print Material | Light color & dark color textile, above 80% cotton | |
Solution | Light Color Textile | Color ink |
Color Textile | Pre-treatment solution + White Ink + Color Ink | |
Printing Quality | Print Resolution | User definable up to 2880*1440dpi (Recommend setting:1440x1440dpi for white ink,1440x720dpi for color ink) |
Platform Size | 40x110cm | |
Platform configuration | · Standard clothing tray: 3pcs of 30x40cm (Max. Printing Size: 28x38cm) · You can also choose: 3pcs 40x40cm, or 2pcs of 40x53cm · Accept custom size clothing tray, Max. size up to 40x53cm | |
Print Speed | White color t-shirt, 160sec / piece Dark color t-shirt, 320sec / piece (The data is based on 1440*720dpi resolution) | |
Print Height | Up to 10cm | |
Print Material Weight | Up to 5kg | |
Two Pass Deviation | ±0.5mm at 25ºC 50-60%RH | |
Print Technology | Printing Direction | Smart Single/ Bi-directional printing mode |
Printing Method | Non-contact micro piezoelectric ink-jet printing | |
Printing Nozzle | 180 nozzles*8 | |
Nozzle Protection | Touch detection automatic protection system | |
Control Panel | Touch-screen, 4.3-inch, full color | |
Control System | PLC control servo motor, Upgradeable | |
Height Adjustment | Semi-automatic, Intelligent infrared induction alarm system | |
Position Detection | Up, Down, Forward, Back, 4 directions with limit position control system | |
Transmission Type | Wi-Fi, USB, Ethernet | |
Power Protection | UPS power, protect machine when power break | |
Emergency Stop | Individual emergency stop button | |
Ink Cure | By heat press machine,160ºC,Only 60sec; By dryer, 160ºC, 4mitutes | |
General Info. | Working Environment | Temperature: 10~35ºC; Humidity: 20-80%RH |
Water Durability (1-5degree) | 4 degree | |
Power Supply | AC110/220V±10%, 50hz-60hz, Power=600w | |
Driver | Windows XP/7/8 | |
Software | RIP software | |
Language | English, Chinese | |
Packing | Weight | Printer: 281kg Package (with fumigation-freewooden case): 450kg Vol. weight: 627.3kg |
Dimensions | Printer: L240*W92*H113cm Package (with fumigation-free wooden case): L250*W102*H123cm, 3.14M3 | |
HS Code | 8443321300 | |
Price include (Accessories) | Machine body, 3pc 30*40cm clothing tray, 1pc RIP Software, 1set 4880 printer driver CD, 1set 4880 cartridge with resettable chip, 1pc chip resetter, 1pc power cord, 1 wifi receiver, 1set repair kits, 1set stirring apparatus | |
Warranty | ·3 months warranty for print head with using Microtec textile ink, otherwise 3months warranty for print head; ·One year for all other machines parts; ·Lifetime maintain. Tips: To prolong the service life, we recommend not work more than 8 hours per day. |
Prod Model: | MT-FPM2-TS |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ink Color: | Cmyk + Wwww or Cmyk X 2 |
Ink Bottle Volume: | 220ml*8 Color |
Ink Cost: | White Color T-Shirt, USD0.6-0.9/PC / 40X40cm Dar |
Print Material: | Light Color & Dark Color Textile, Above 80% Cotto |
Solution: | Pre-Treatment Solution + White Ink + Color Ink |
Print Resolution: | User Definable up to 2880*1440dpi |
Platform Size: | 40X110cm |
Trays Configuration: | Max. Printing Size: 28X38cm |
Print Height: | up to 10cm |
Print Material Weight: | up to 5kg |
Structure: | Flat-Bed Cylinder Press |
Color & Page: | Multi-Colour Printing Press |
Printing Interface: | USB2.0 |
Plate: | DTG Printing |
System Supported: | Win7, Windows XP |
Printing Speed: | 150 Seconds for A4 Size |
