Product Specifications
Prod Model: |
HX-PCB-016 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
157mm X 78mm |
Surface Treatment: |
Immersion Tin |
Layer: |
2 |
Copper Thickness: |
1oz |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy |
Flame Retardant Properties: |
V1 |

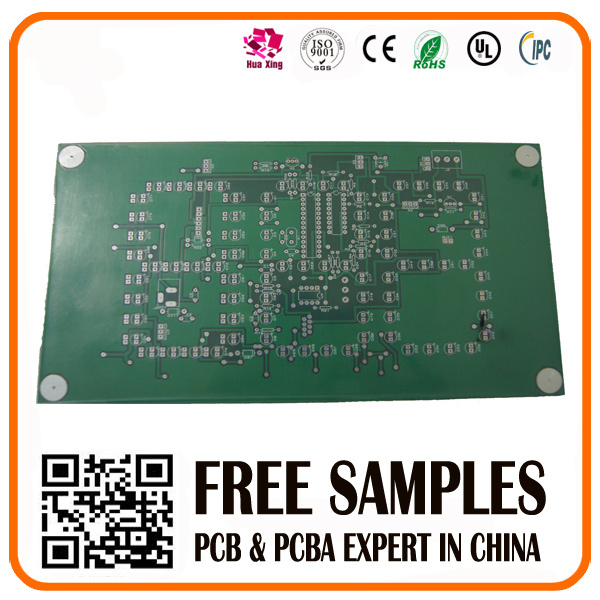

Product Description
Layer: 2 Layer
Material: FR4
Board Thickness: 1.6mm
Surface Treatment: Immersion Tin
Solder Mask: Green
Size: 157mm x 78mm
Copper Thickness: 1.0oZ
Min. Line Spacing: 0.3mm
Min Trace Space: 1.0mm
Detailed Terms for Pcb & Pcb Assembly
We are a Manufacturer & Supplier Specializing in Double Side PCB, Multi-Layer PCB, F4BK PCB, Ceramic PCB, Rogers PCB, Aluminum PCB. Meanwhile, we provide PCBA ( Assembly) and ODM, OEM service. We are specializes in a full SMT and through hole PCBA assembly, obtaining components, building prototype quantities, and testing.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.
?
Item |
Mass Production |
Pilot Run Production |
Capacity |
Capacity |
Layer Counts |
1L_18L, HDI |
20-28 , HDI |
Material |
CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina) |
Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880) Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc. |
Material Mixed Laminate |
4 layers -- 10 layers |
12 layers |
FR4+Ro4350 , FR4+Aluminium , FR4+ FPC |
Maximum Size |
610mm X 1200mm |
1200 - 2000MM |
Board Outline Tolerance |
±0.15mm |
±0.10mm |
Board Thickness |
0.125mm--6.00mm |
0.1mm--8.00mm |
Thickness Tolerance ( t≥0.8mm) |
± 8% |
±5% |
Thickness Tolerance( t<0.8mm) |
±10% |
±8% |
Minimum Line / Space |
0.10mm |
0.075mm |
Trace width Tolerance |
15%-20% |
10% |
Minimum Drilling Hole (Mechanical) |
0.2mm |
0.15mm |
Minimum laser hole |
0.1mm |
0.075mm |
Hole Position/hole Tolerance |
±0.05mm PTH:±0.076MM NPTH:±0.05mm |
Mini hole ring (single |
0.075MM |
0.05MM |
OutLayer Copper Thickness |
17um--175um |
175um--210um |
InnerLayer Copper Thickness |
17um--175um |
175um--210um |
Mini Solder Mask Bridge |
0.05mm |
0.025mm |
Impedance Control Tolerance |
±10% |
±5% |
Surface Finishing |
HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. |
Plated gold , OSP, Carbon ink, |
1-2L Lead-time |
3-7 days |
1-2 days |
4- 8L Lead-time |
7-10 days |
2-7 days |
10-18L Lead-time |
10-15 days |
4-9 days |
20-28L Lead-time |
15-20 days |
Acceptable File Format |
ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc. |
Quality Standards |
IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Hua Xing PCBA Limited, is a privately owned company founded in 1998, with a qualified, experienced and dedicated team of professionals, hua xing PCBA limited is able to provide a full compliment of services to our clients with a complete systems design, build, integration and after-sales support.
Hua Xing PCBA limited offer a full suite of design services; From schematic design, board layout, component selection, firmware design, mechanical design to PCB, PCBA, chip cloning, we can help you procure components, PCB FPC making, mold making, plastic injection, assemble, package, and deliver the finished goods to you, or even drop ship to a third party. If you require only one aspect of the above, we have the flexibility to adapt to your needs and requirements.
Printed circuit board assembly. Wire harnessing, sheet metal assembly, final packaging, you name it and we are able to successfully complete it to your demanding specifications. You want to supply the pcbs or have parts in inventory you would like us to use? Full or partial consignment orders, whatever works best for you.
We welcome prototype and small run quantities as well as larger production volume. Since we are here to serve you, we will take the time to get to know your products and to understand your needs. No detail is unimportant. Our flexibility means that nothing is too small, too large or too difficult.
Contact us and experience the difference and quality of hua xing PCBA limited. We are looking forward to working with you.
