Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
Product Description

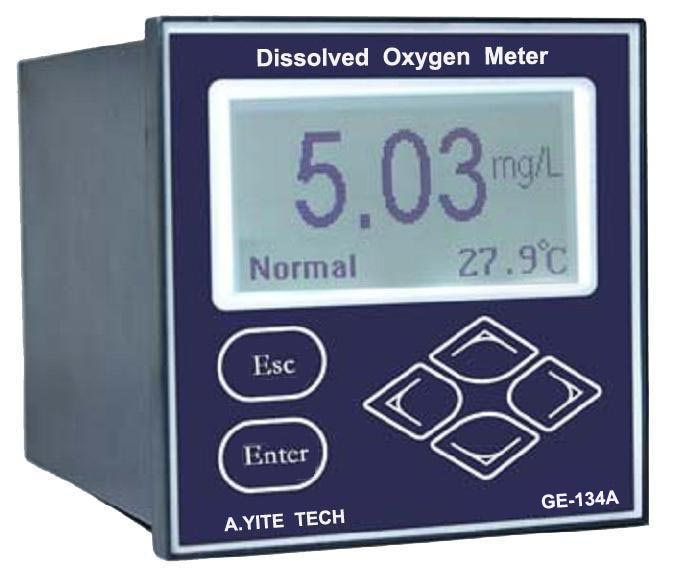

This water analyzer could work for SOD Dissolved Oxygen measuremen in water monitor field, flexibility, reliability and low maintenance, designed to meet the exacting requirements of measuring dissolved oxygen in the modern industrial environment, it contains many features to ensure the best precision whatever the application.
It could work for Environmentally friendly water treatment, Power Station, Fermentation Engineering, Petrochemical, Metallurgy, Mining industry, Paper industry, Medicine, Food & Beverage, Aquaculture, Modern farming.
Character:
* Flexibility, reliability and low maintenance
* Temperature compensation
* 2 alarm relay
* Temperature output current signal optional
* RS485//RS232 Communication Interface Optional
* Menu operation mode & Password protection
* 128*64 Large LCD display
Specification:
1. Measuring Range:
* 0.2mg/L ~ 25.0mg/L 0.0 ~ 200μg/L
* Temperature: -5C ~ 110.0C
2. Resolution:
* Dissolved Oxygen: 0.1μg/L; 0.01mg/L
* Temperature: 0.1C
3. The Basic Error:
* Dissolved Oxygen: ± 0.2mg/L FS; ± 0.2μg/L FS
* Temperature: ± 0.3C
4. Current Output: 0~10mA or 4~20mA
5. 2 Alarm Relay: 3A 240VAC (Max)
6. Power Consumption: 220V~240VAC <3W; 110V<2W; 24VDC<1W;
7. Optional: RS485//RS232 Communication Interface & Temperature Output)
Dissolved Oxygen Electrode:
* SOD-01: 0.2 ~ 25mg/L 0~60C (sewage, industry water, fishpond water)
* SOD-02: 0 ~ 200μg/L 0.2 ~ 25mg/L 0 ~110C (Boiler Deaerator, trace oxygen water)
* SOD-03: 0 ~ 200μg/L 0.2 ~ 25mg/L 0 ~130C (Fermentation & Medicine)
In the Environmental Protect field, we design many type of water analyzer products, most of them is industry grade water online monitor, e. G. pH & OPR Analyzer, Conductivity Analyzer, Dissolved Oxygen Analyzer, Luminescent Optical Dissolved Oxygen Analyzer Meter, Acid Alkali Concentration Meter, Residual Chlorine Analyzer Monitor Meter, MLSS Suspended Solids Sludge Concentration Meter, Turbidity Monitor Meter, and some depth & level meter for sludge or water.
