Product Specifications
| Prod Model: |
DL69-2042 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crus Size: |
79*43*25 |
| Fixing Size: |
79*39 |
| Installation: |
General Installation Meter |
| Display: |
Digital |
| Usage: |
Meter for Industry and Home Use |
| Theory: |
Electronic Meter |
| Power Source: |
AC and DC |
Product Description

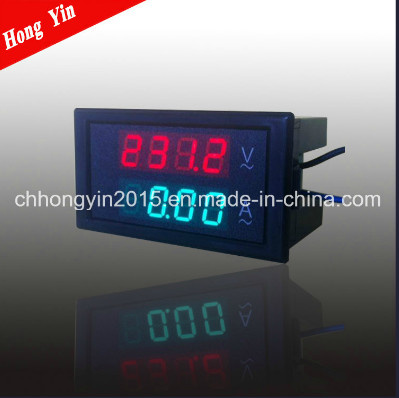

DL69-2042 LED display dual volt and amp meter
SPECIFICATION
Dimension: W79mm x h43 Mm x d25mm
Panel cutout: W79mm x h39mm
Power supply: 5V, 12VDC, 9VAC, or Isolated 5V, 12V, 9VAC
AC110V, or 18-36V, 36~72VDC power mold
Power style as your application
Mounting Method: Snap-in
FEATURES
6 years history in digital panel meter line
Classic design
Ultra-brightly LED display
With 25cm prepared pigtail
PLEASE SEND EMAIL FOR YOUR ANY SPECIAL REQUIREMENT & APPLICATION!
D69-20 LCD
AC Voltmeter
series | D69-20V-1(AC) | AC199.9mV | LED color: Red / Blue / Green
Power supply: DC5V,12V,24V, AC9V; AC110V,120V,220V,240V
Special power source As your request
Dimension: W79mm x H42.5mm x D25.5mm
W79mm x H42.5mm x D55.5mm
Aperture Size: w76mm x h39mm
Mounting Method: Snap-in |
| D69-20V-2(AC) | AC1.999V |
| D69-20V-3(AC) | AC19.99V |
| D69-20V-4(AC) | AC199.9V |
| D69-20V-5(AC) | AC300V |
| D69-20V-6(AC) | AC500V |
D69-20 LCD
DC Voltmeter
series | D69-20V-1(DC) | ±199.9mV |
| D69-20V-2(DC) | ±1.999V |
| D69-20V-3(DC) | ±19.99V |
| D69-20V-4(DC) | ±199.9V |
| D69-20V-5(DC) | ±300V |
| D69-20V-6(DC) | ±500V |
D69-20 LCD
AC Ammeter
series | D69-20A-1(AC) | AC199.9uA |
| D69-20A-2(AC) | AC1.999mA |
| D69-20A-3(AC) | AC19.99mA |
| D69-20A-4(AC) | AC199.9mA |
| D69-20A-5(AC) | AC1.999A |
| D69-20A-6(AC) | AC5.00A |
D69-20 LCD
DC Ammeter
series | D69-20A-1(DC) | ±199.9uA |
| D69-20A-2(DC) | ±1.999mA |
| D69-20A-3(DC) | ±19.99mA |
| D69-20A-4(DC) | ±199.9mA |
| D69-20A-5(DC) | ±1.999A |
| D69-20A-6(DC) | ±5.00A |
