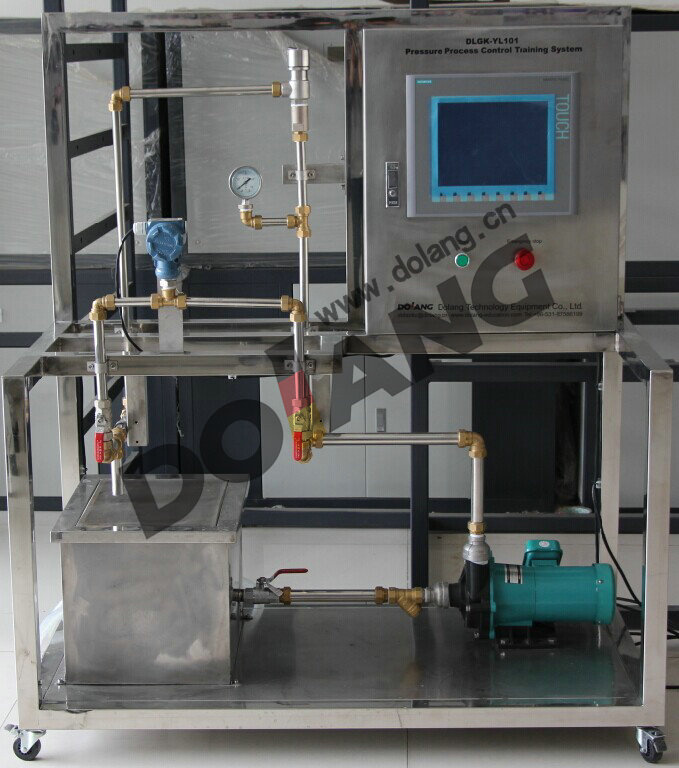

DLGK-YL101 Pressure Process Control Trainer

Product Specifications

Prod Model:	DLGK-YL101
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Components:	Industrial
Type:	Teaching Model
Usage:	Training

Product Description


DLGK-YL101
Pressure Process Control Training Equipment

III.Technical Parameters
1.         Input voltage: single-phase three-wire 220V ± 10% 50/60HZ
2.         Operating environment: Ambient temperature range -5 ~ 40 ºC
3.         Installed capacity: AC <1000VA
4.         security: leakage protection (operating current ≤ 30mA), overcurrent protection, fuse protection
5.         DC power supply:. DC24V Power <5A
6.         Ambient temperature:. -10 ºC ~ 40 ºC
7.         Relative humidity:. ≤ 90% (25 ºC)
8.         Control cabinet dimensions: length × width × height = 500 × 200 × 600
9.          Process Control Unit Dimensions: length × width × height 1200 × 600 × 1400

5. Main Confirguration

NO.	Item	Picture	Specification
1	Control cabinet		Including control cabinet, breaker, fuse, CPU1214C, RS232 communication module, RS485 communication module,PROFIBUS DP communication module,terminals, touch screen and buttons
2	Process control unit		Including storage water tank,pressure sensor, Variable frequency magnetic pump, valve, pressure gauge, ball valve, filter, pipeline and relief valve
3	Cable	Network cable	Communication of PC and controller


6. Part list

NO.	Item	Specification	Quantity	Remark
1	Training workbench	Stainless steel	1
2	Cabinet	Stainless steel	1
3	Storage water tank	Stainless steel	1
4	Mounting bracket of liquid level switch	Stainless steel	1
5	Mounting bracket of pressure gauge	Stainless steel	1
6	Stainless steel double-float level switch	DC24V,3A	1
7	Relief valve	2A12	1
8	Magnetic driver	MP-120R 380V 0.37KW	1
9	Pressure gauge	Y-60B  0--0.4MPa	1
10	Pressure sensor	MC20A	1
11	Ball valve	Q20	3
12	Stainless steel pipe		1
13	PLC	CPU1214C	1
14	DP Mater station	CM1243-5	1
15	Analogue input/output module	SM1234	1
16	Communication module	RS485CM1241	1
17	Communication module	RS232CM1241	1
18	Touch screen	KTP1000	1
19	Memory card	24MB	1
20	Frequency converter	V20	1
21	Awitching power supply	Input :AC220V,60HZ Output:DC24V 5A	1
22	Breaker	DZ34LE63-C10,2P	1
23	Breaker	2P,6A	1
24	Fuse protector	RT18-32	1
25	Fuse	5A	1
26	Power filter	AC2A6-2,250V6A,60HZ	1
27	Reset button	LAY50-22D. 1open 1close,With green LED DC24V	1
28	Self-lock emergency knob	LAY50-22D. 1open 1close,With red LED DC24V	1
