1. Mobile Used Insulating Oil Purifier/Transformer Oil
2...Improve break vltage up to 75KV
3. Design for Insulating Oil 25#, 45#
4. Mounted on trailer with weather proof enclosure to prevent rain, sun and dust
5. Online moisture and quality NAS monitor
Application
1) ZYMTransformer Oil purifier is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. From the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.
2)ZYM series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Benefits
1) Simple automated operation and esay maintenance
2) Excellent and visual treating effect and low treatment cost
3) Stationary, mobile, trailer mounted are designed for your option
4) Environment-friendly process
5) OEM, ODM available
6) Overseas service available.
Features:

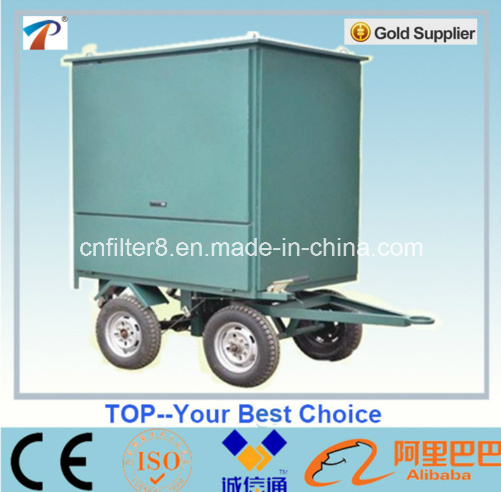

1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
Optional Features:
An exhaust condenser to measure the extracted water
Condenser is equipped to settle the most volatile oil fractions which might distil back to the column
Digital temperature measurement
Digital precision vacuum gauge
Digital flow meter
Digital in line moisture content meter
Ionic reaction columns to remove the acidity from the oil
Audio / Visual fault annunciation System
PLC control system
Mobile Trailers can be provided
Fully-enclosed and Semi-enclosed for weather-proof are available
After -sales Service
1. Two years guarantee for product quality. (except man-made damage)
2. Free training, installation and testing are available
3. Lifelong maintenance Service
4. Spare parts supply
Index after purification (test at oil-outlet of the machine):
Water content≤ 3ppm
Gas content≤ 0.1%( by volume)
Acetylene content: 0
Breakdown voltage≥ 75KV (Spherical polar)
Particle qty in 100ml oil≤ 500 (5-50 micron), (0 for ≥ 100 micron particle).
Dielectric loss tgδ ≤ 0.3% (90° C)
Acid value ≤ 0.1mgKOH/g
