Product Specifications
Prod Model: |
CK-0325C & D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Brass |
Rated Voltage: |
250~450V |
Rated Current: |
125~160A |
Middle Screw: |
M5 X 10 |
Two End Screw: |
M8 X 12 |
Certificate: |
CE |
OEM: |
Yes |
Package: |
Standard Export Package |
Export Port: |
Ningbo or Shanghai |
Delivery Time: |
7~15 Working Days |
Application: |
Lighting |
Environmental Protection: |
Resistance to Environmental |
Connection Mode: |
Threaded Connection |
Shape: |
Rectangle |
Contact Termination Form: |
Screws Fixed |
Brand: |
Ygen |
Product Description
*Professional Manufacturer of Copper Terminal Block
*CE Approved of Copper Terminal Block
We are professional manufacturer of terminal block/ connector in Zhejiang,China.
We offer OEM service for any custmers' request.
We can offer free sample for your testing purpose,if possible.
Delivery Method: By sea (Ningbo Port/Shanghai Port) ,By Air,By Express (DHL,Fedex,TNT,etc)
Payment Methond:T/T,PAYPAL,Western Union
Delivery Time: 7~10 working days

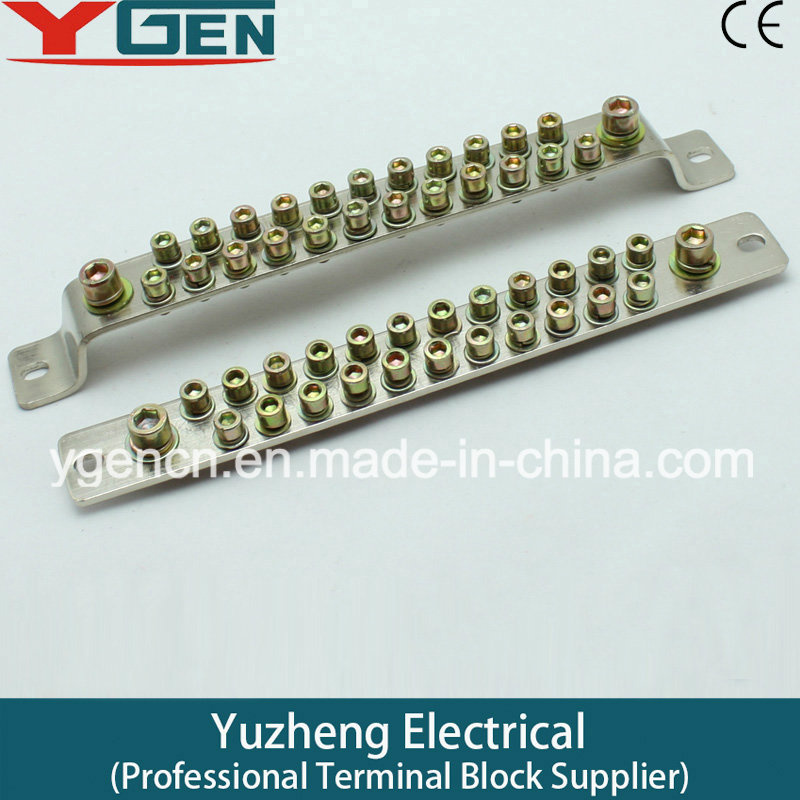

Double Rows 23 poles earthing and netural connector
Item No.:CK-0325 (3 X 25 mm)
Material: Brass (Nickel-plated Brass) and Screw (Zinc-plated Iron)
Rated Voltage:250~250V
Rated Current:125~160A
CK-0325A Neutral Terminal |
Pole Number | Specification (mm) | Whole Length (mm) | Mount Lenght (mm) | Remark |
5 | 3 X 25 | 149 | 135 | Screw:M8 X 12 Mount Hole Size: 8 X10mm Screw can be Cross Screw or Hexagonal Screw |
6 | 3 X 25 | 169 | 155 |
7 | 3 X 25 | 189 | 175 |
9 | 3 X 25 | 229 | 215 |
10 | 3 X 25 | 249 | 235 |
CK-0325B Earthing Terminal |
Pole Number | Specification (mm) | Whole Length (mm) | Mount Lenght (mm) | Remark |
5 | 3 X 25 | 140 | 125 | Screw:M8 X 12 Mount Hole Size: 9 mm Screw can be Cross Screw or Hexagonal Screw |
6 | 3 X 25 | 160 | 145 |
7 | 3 X 25 | 180 | 165 |
9 | 3 X 25 | 220 | 205 |
10 | 3 X 25 | 240 | 225 |
CK-0325C Neutral Terminal (Double Rows) |
Pole Number | Specification (mm) | Whole Length (mm) | Mount Lenght (mm) | Remark |
13 | 3 X 25 | 160 | 146 | Middle Screw:M5 X 10 Two Ends Screw:M8 X12 Mount Hole Size: 6 X 8mm |
15 | 3 X 25 | 172 | 158 |
18 | 3 X 25 | 190 | 176 |
21 | 3 X 25 | 208 | 194 |
25 | 3 X 25 | 232 | 218 |
CK-0325D Earthing Terminal (Double Rows) |
Pole Number | Specification (mm) | Whole Length (mm) | Mount Lenght (mm) | Remark |
13 | 3 X 25 | 142 | 128 | Middle Screw:M5 X 10 Two Ends Screw:M8 X12 Mount Hole Size: 6 X 8mm |
15 | 3 X 25 | 154 | 140 |
18 | 3 X 25 | 172 | 158 |
21 | 3 X 25 | 190 | 176 |
25 | 3 X 25 | 214 | 200 |
Yueqing Yuzheng Electrical Co., Ltd set up in 2009, but have more than 15 years rich experience in dealing with terminal block OEM /ODM production. As a professional manufacturer of Terminal block, Connector, Brass terminal block, Screw PCB terminal block, Barrier PCB terminal block, Insulating terminal and other electric power fittings, we have exported to more than 10 countries and areas. At present, most our products are exported and welcomed in Europe, South America, Asia, Middle East, etc. We are looking forward to cooperating with international big companies, extending our overseas market, as well as domestic market.
Our the products are widely used in lathe, fly-frame, electric machinery, railroad, shipping, electric control, instrument and computers electrical home appliances trades.
We are a family run company that places its core values of reliability and customer orientation at the center of its everyday business. We are doing everything to offer our customer with best services and best products. We promise that we'll be response all the way to the end once our services begin.
We would be pleased to talk to you pesonally about our products and the comprehensive possibilities that they offer.
We look forward to hearing from you!
