Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Station: |
Full Automaic |
Material: |
Stainless Steel 304 |
Bottle Size: |
200ml-2000ml |
Bottle Material: |
Pet/PVC/PP |
Condition: |
New |
Quaility Certification: |
CE ISO: 9001 |
Application: |
Carbonated Drink |
Total Power: |
5.03kw |
Model: |
Dgcf16-12-6 |
Product Description

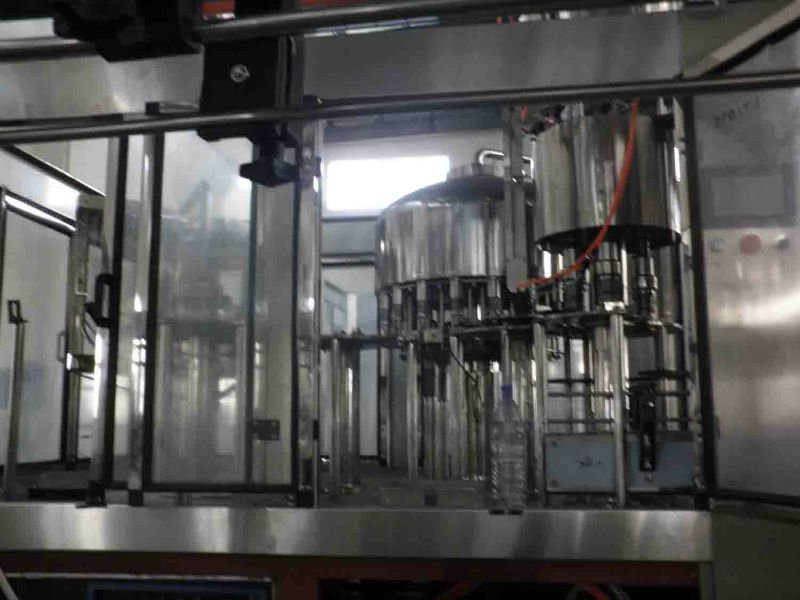

Drink filling machine 3 in 1 automatic
Product Description:
The series equipment is used in production of PET bottle-packing carbonated beverage such as Coca-Cola, containing gas mineral water, containing gas juice etc. The machine combines washing/filling/capping with complete automation, and the filling process adopted the micro-pressure technology, which makes filling process faster and more stable. The capacity can be from 2000 to 4000B/H.
Main Features of Drink filling machine 3 in 1 automatic
Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.
Clamp transferring technology varied bottle types.
with little abrasion. Stable Transferring. Easy to change bottles.
with ring type pressure bearing hydraulic cylinder.
with high filling speed and exact liquid level.
Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. Easy to operate and maintain.
PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
Model |
DGCF16-12-6 |
DGCF18-18-6 |
DGCF24-24-8 |
DGCF32-32-10 |
Production capacity
(500ml)(b/h) |
1000-200 |
4000-6000 |
5000-7000 |
8000-12000 |
Filling precision |
≤ ± 5mm(Liquid Level) |
Filling pressure(Mpa) |
≤ 0.4 |
Polyester bottle standard(mm) |
BottleDiameter
40-80;
Height: 130-280 |
BottleDiameter 50-100
Height: 150-320 |
Suitable cap shape |
Plastic Screw Cap |
Water pressure of washing bottle(MPa) |
0.18 |
Water consumption for water bottle(kg/h) |
1300 |
2000 |
2500 |
3000 |
Spraying position |
5 |
5 |
6 |
12 |
Dripping bottle position |
2.5 |
3 |
3.5 |
7 |
Gas source pressure(MPa) |
0.4 |
Gas consumption(m/min) |
0.3 |
0.4 |
0.4 |
0.5 |
Total power(kw) |
5.03 |
5.03 |
6.57 |
8.07 |
Total weight(kg) |
2000 |
3000 |
4000 |
5000 |
Dimension(l× w× h)(mm) |
2100× 1500× 2200 |
2450× 1800× 2200 |
2750× 2180× 2200 |
3600× 2200× 2600 |
