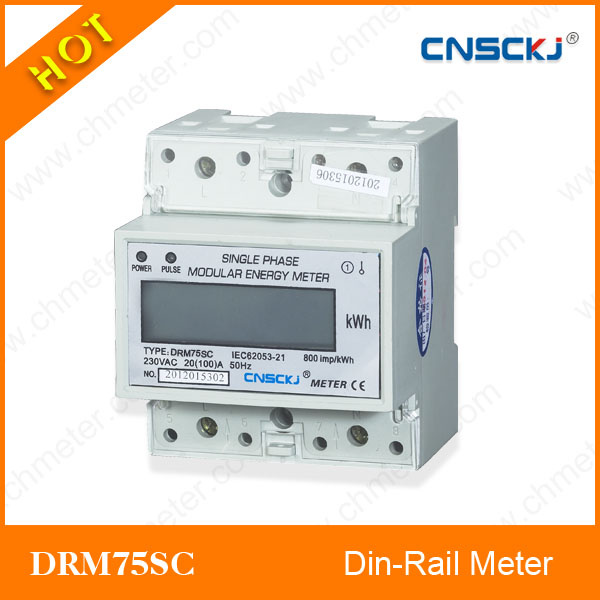

Application: 75S, Drm75SA single phase DIn rail watt-hour meter is a kind of new style single phase electronic watt-hour meter, it adopt micro-electronics technique of digital and SMT techniquesm etc.
The meter completely accord with relevent technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and internation stardard IEC610636. It can accurately and directly measure 50 HZ or 60HZ active energy consumption from single phase AC electricity net., it has following feature; Good reliablity, small volume, light weight, specious nice appearance, convenient installation.
Function and features:
1.35MM standard Din rail installation, complying with standard Din En5002
2. May select 5+1 digits register by step type display
3. Impulse output when no power, complying with standard Din43864
4. May select normal of simple connection
|
Accuracy |
Class 1.0 |
|
Rated voltage |
220VAC,230VAC,240VAC,etc. |
|
Operation voltage range |
Un± 20% |
|
Insulation capabilities |
AC voltage withstand 2kV for 1 minute ; Impulse voltage withstand 6kV - 1 . 2/50μs waveform |
|
Rated current |
5(20)A ,5(25)A ,5(30)A, 5(32)A ,,etc. |
|
Operation current range |
0.05Ib~ Imax |
|
Starting current |
0.004Ib |
|
Rated frequency |
50Hz or 60 Hz |
|
Internal power consumption |
Voltage Circuit ≤1.0W 5VA ; Current Circuit ≤1VA(Ib) |
|
Interface |
Optical coupler (So corresponding to DIN 43864) |
|
Impulse valence Ra |
0,5 or 1.0 Wh/imp |
|
Max.operation temperature |
-25 ° C ~ +70 ° C |
|
Max.storage temperature |
-30 ° C ~ +75 ° C |
|
Relative humidity |
≤ 85% |
*Please advise us if you have any different specifications,we can make according to your spcal requirements.
|
