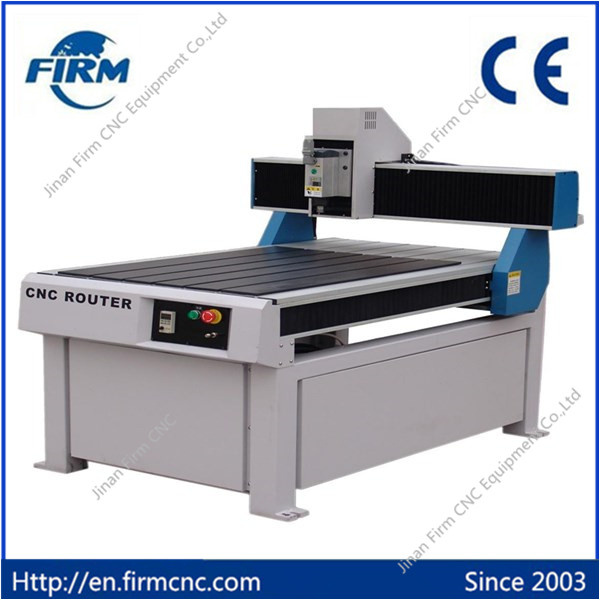

DSP MDF CNC wood router for Wood Working
FM-6090: This kind of machine is the main products of Jinan Firm CNC Equipment co, . Ltd which specialize in the produce of the machine. It`s working area is 600m*900m, aluminium profile table, can cutting and engraving material including wooden craft, aluminum, acrylic...
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication
And the last I really want to tell you we also can produce the machine as your requested including the brand of the parts, the color of the machine body...If there are any questions please let us to answer
| Model | FM-6090 | Customization |
| X.Y.Z axis travel | 600*900*150mm | yes |
| Platform dimensions | 600Χ900mm |
|
| Max. operating speed | 15m/min |
|
| Max. carving speed | 0-5m/min |
|
| Resolution | 0.025mm |
|
| Resetting accuracy | 0.025mm |
|
| Carving command | G mode*,u00*.mmg*.plt |
|
| Guide rail | Precision work round | Taiwan HIWIN Linear Rail |
| Spindle | 3kw water-cooling spindle | yes |
| Operating voltage | AC380V/50Hz | yes |
| Spindle speed | 6000-24000rpm |
|
| Driving mode | high precision pinion and rack |
|
| Operating mode | Stepper |
|
| Working Software | Windows98/2000/XP |
|
| Compatible Software | Type3 software, Wentai software, Artcam software |
|
| Optional Accesseies |
|
|
| Vacuum absorbing table &Vacuum pump |
|
| Control handle (USB connected controller) |
|
| Dust collector |
|
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
