Product Specifications
Prod Model: |

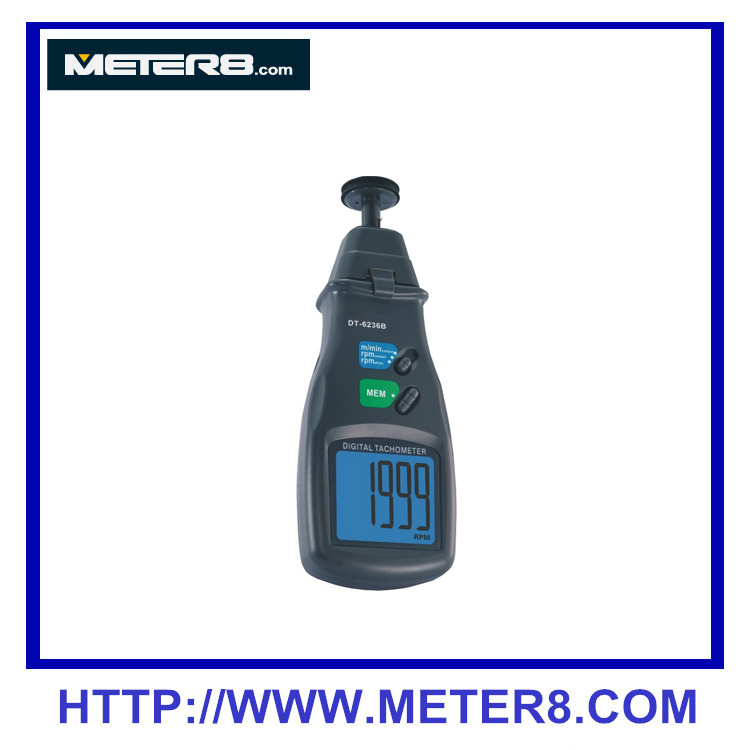

DT-6236B Digital Laser And Contact Tachometer |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Photo Tach: |
2.5 to 99, 999rpm |
Contact Tach: |
0.5 to 19, 999rpm |
Surface Speed: |
0.05 to 1999.9m/Min |
Accuracy: |
± (0.05%+1 Digit) |
Sampling Time: |
0.8 Sec. (Over 60 Rpm) |
Power Consumption: |
Approx. 50mA |
Product Description
Display: 5 digits, 31mm blue backing LCD display
Test Range:
PHOTO TACH: 2.5 to 99, 999RPM
CONTACT TACH: 0.5 to 19, 999RPM
SURFACE SPEED: 0.05 to 1999.9m/min
Resolution:
PHOTO TACH: 0.1RPM (2.5 to 999.9 RPM)
1RPM (over 1000 RPM)
CONTACT TCAH: 0.1RPM (0.5 to 999.9 RPM)
1RPM (over 1000 RPM)
SURFACE SPEED: 0.01m/min (0.05 to 99.99m/min)
0.1m/min (over 100m/min)
Accuracy: ± (0.05%+1 digit)
Sampling Time: 0.8 sec. (over 60 RPM)
Test Range Select: Automatic
Memory: Max. Value, Min. Value, Last Value.
Battery: 4× 1.5V UM-3 battery or to connect the DC 6V Regulated power supply
Power Consumption: Approx. 50mA
Operation Temp.: 0 to 50C(32 to 122F)
