Product Specifications
| Prod Model: |
DTSD1977 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
176*235*76.7 |
Product Description

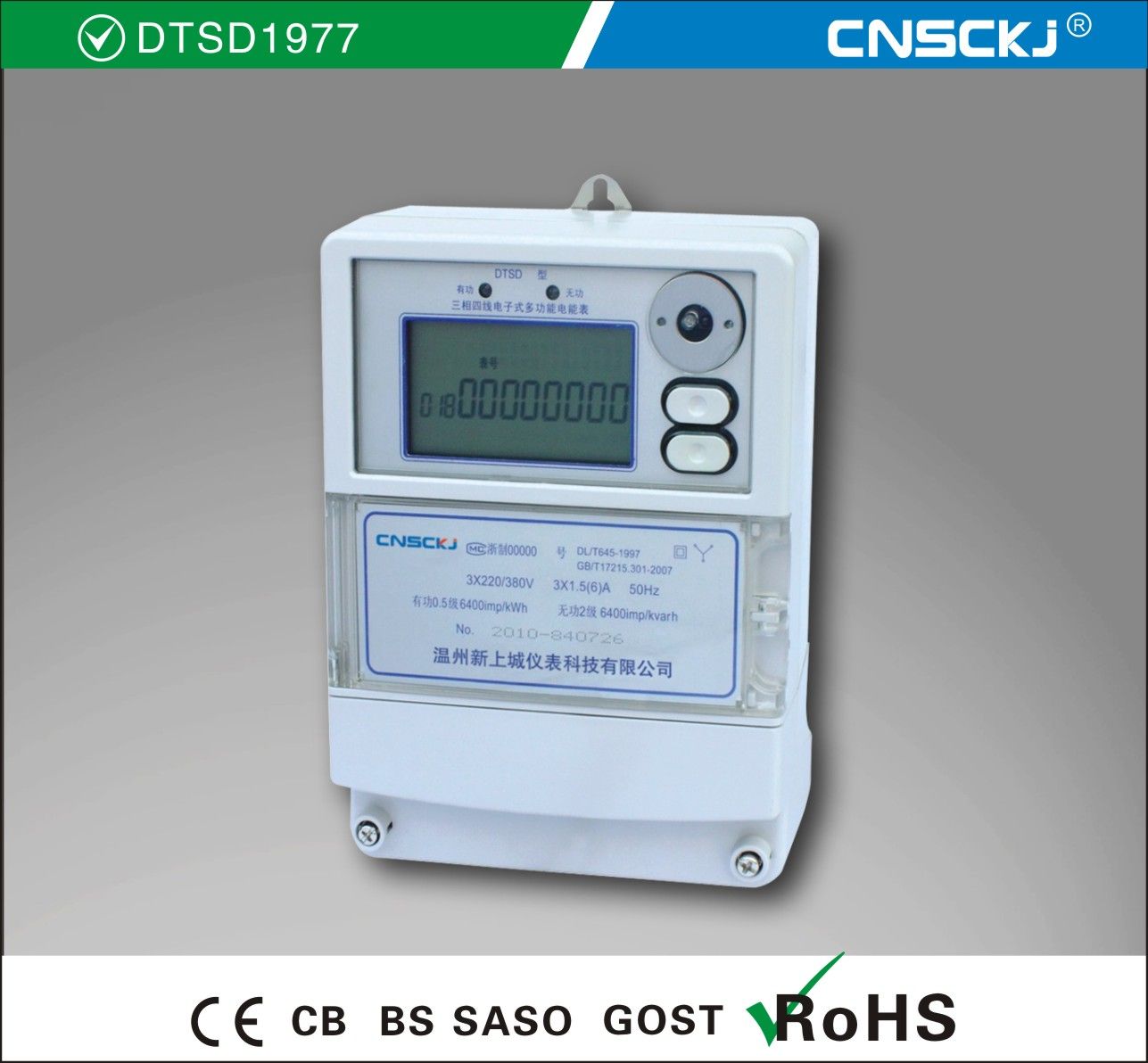

DTSD, DSSD1977 Type three-phase multi-function watt-hour meter
INTRODUCTION
DTSD, DSSD1977 type three-phase multi-function watt-hour meter is a modern advanced level meter which adopt large-scale integration circuit, apply number sampling processing technology and SMT cratt.
The performance index of the rneter accord with the technical requirements of national standard, such as GB/T 17215.321-2008"Class 1 and 2 Static A. C Active watt-hour Meter", GB/T 17215.322-2008 "Class 0.2s and 0.5s Static A. C Activewatt-hour Meter", and DL/T614-1997"Multi-functionwatt-hourmeter", the communicationagreement accord With DL/T645-1997.
It has function such as measuring each direction of active, reactive electrical quantity and demand quantity, two 485communication, awakening etc It has the advantageof stable performance, high accuracy, easy operation.
ELEMENT
When watt-hour meter working, voltage, current pass sampling circuit, then the A/D switch transform it to number signal, send it to DSP for processing with adaptation of 16 A/D switch, make voltage current sampling resolving power improvement, at the same time with application of DSP, to enhance the abllity ofcalculatingofelectrical quantity, to enhance the competition of product.
MCU apply to time-sharing counting and processlng all kinds of output, input data And measure the active, reactive power, max demard power accord to the period which are set in prior It can display the data if needed, and can transmit the data by infrared or port 485 monitor the operatinq parameters, record all kinds of data.
FUNCTION
Electric energy measurement, max demand record, Multi-tariff 1055 voltage and 1055 phase record, 1055 current record, over voltage record, owing voltage record, over Current record, voltage qualified rate record, data scroll display, pressing-key display, power on, off record, check-timing on broadcast, alarming, programmable function, wave measurement function.
Record power-off times, time ( battery working tirne ) and meter operating time
Record meter present 1 minute active average power and present reactive aerage power
Record present operation state ofthemeter
Electric energy freezing
Active electric energy freezing function
Awakening power-off multi-unction check
Independence of two 485 communication interface and infrared communication interface
Backlight function and record function.
Affairs record
TECHNICAL CONDITION
Accuracy Class: Active: 0.2S, 0.5S, Reactive: 1.0, 2.0
Rated frequency: 50Hz
Starting current: Active 0.001ln( 0.2s ) reactive 0.003In ( 2.0s )
Potential movement: Anti potential movement Iogic design
Electrical parameter: Normal working voltage: 0.8Un~1.1 Un
Limit working voltage: 075Un-1.2 Un
Voltage line power consumption: ≤ 2W and 5VA
Current line power consumption: ≤ 1 VA
Backup battery voltage: 3.6 VDC
Power-off reading meter battery voltage: 6.0 VDC
Tariff working parameter
Clock accuracy ( day error )≤ 0.5s, battery capacity≥ 1000mAh
Power-off data conserving time≥ 10years ( use newbattery )
| Rated Current ( A ) | 3×1.5 (6),3×5(20),3×10(40),
3×15(60),3×20(80),3×30(100) |
| Rated Voltage ( V ) | Three-phase Three-wire 3×100V or 3×380V
Three-phase Four-wire 3×220V/380V or 3×57.7/100V |
| Rated Frequency(Hz) | 50 or 60 |
| Accuracy Class | Active : 0.5\Reactive : 1.0 or Active : 1.0 \Reactive : 2.0 |
| Clock Error | ≤0.5sec/ per day ( reference temperature ) ;
≤1.0sec/ per day ( the backup lithium battery working time). |
| Battery | Imported llthlum battery voltage : 3.0 or 3.6V ; Capacitance
> 1000mAh ; 1200bps~9600bps ; lt has the program both
In insider and outside ; Update the date per 0.01 degree ;
Two sets of battery keep the clock and reIative date ; Setup
the alarm data of the battery;Loss and press blanking timing
and electric consumption rate switches over time in the
minImum interval for one minute. |
Product Description
Product Name: three-phase multi-function watt-hour meter
Country of Origin: China
Model: DTSD1977
Color:Blue
power: AC 3×380V
Out size: 171.5*271*76
Hole size: *
N.W: KG
Package Size: * *
Qty/Ctn:
Carton Weight:
Packing: Carton
Warranty: 1Years
