Product Specifications
| Prod Model: |
DTSF5558 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
Digital Only |
| Phase: |
Three Phase |
| Output Voltage: |
110V,220V,230V,240V |
| Usage: |
Maximum Demand Meter |
Product Description

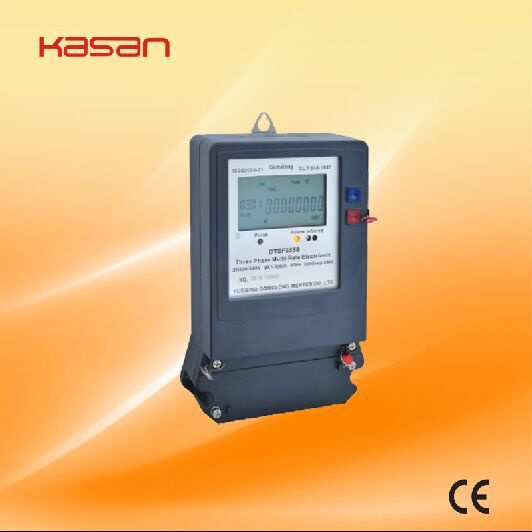

DTSF5558 Three phase multi-tariff Energy meters is a new type of multi-function meter.it accords with the correlative standard, rules of the nation .It has the function as high-accuracy, well stability, advanced technology and easy operation, The performance index of the meter accord with the technical requirements of nation standard, such as GB/T 17215.321 -2008 Class I and 2 Static A.C Active Watt-hour Meter, GB/T 17215.322-2008 Class 0.2S and 0.5S Static A.C Reactive Watt-hour Meter, GB/T 17215.323-2008 Class 2 and 3 Static A.C Reactive Watt-hour Meter and DL/T 614-1 997 Multi-function Watt-hour Meter the communication agreement accord with DL/T 645-1 997.
Measurement function
1 Measure bidirectional active energy, (reverse energy is calculated as positive energy), and store its data.
2 The total, peak, apex, level, valley electric energy consumptions are separately measured and stored.
3 The communication, time zone switch, repeated power out and on, will not affect the measurement accuracy of the meter.
4 Store multi-tariff energy data of 12 months including current month, data transfer store dividing-line time is automatic read meter date. Can freeze and transfer store the data of electric energy on any hour of any given day between 1st and 28th in each month.
5 Data is stored in EEPROM when power-cut, and data can be kept for more than ten years.
Key specifications
Rated voltage: |
3/1.5(6)A, 3/5(20)A, 3/10(40)A, 3/15(600A, 3/20(80)A, 3/30(100)A |
Current: |
5/20A, 5/30A,5/40A, 5/60A, 10/60A, etc |
Frequency: |
50HZ,60Hz |
Meter cover: |
PC (other types of cover is available as customer requires) |
Meter base: |
PC (other types of cover is available as customer requires)
Sealing is available for anti-fraud |
Terminal cover: |
Short cover |
Display : |
LCD display
It can display kwh, kvarh, impulse, three LED, infrared, current, voltage, frequency, barcode, total kwh consumtion, etc |
LED Indicator: |
3 LED indicators |
Normal temperature |
-10 to +40°C |
Limited temperature |
-25~+55°C |
Storage Ambient temperature |
-25~+70°C |
Standard: |
IEC62053-21, IEC62052-11, GB/T17215.321-2008 |
Certifications |
CE, ISO9001:2008 |
Accuracy: |
Class 1.0 |
Temperature: |
-40~+70 |
Lifetime: |
>10years |
