Product Specifications
| Prod Model: |
D-100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Warranty: |
1 Year |
| Output Type: |
Dual |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Width Modulation Type |
| Starting Mode: |
Self-excited Switching Power Supply |
| Connection Mode: |
Series Switching Power Supply |
| Power Supplying System: |
Terminal Power Distribution Equipment |
Product Description

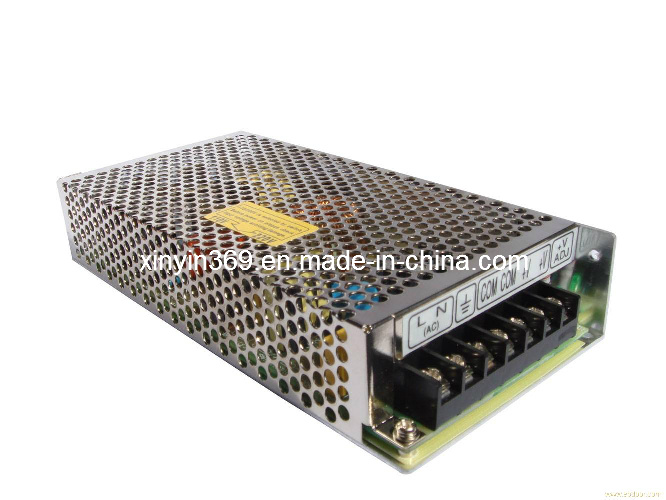

100W Dual Output Switching Power Supply, SMPS
Features:
AC input range selected by switch
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 28kHz
199*110*50mm (L*W*H)
Our switching power supply product:
Single output LED power supply
Dual output d series power supply
Triple output t series power supply
Quad output q series power supply
Miniature size ms, RS, NES series power supply
Witch PFC function sp series power supply
DIN rail DR series power supply
LED driver, FS series power supply
Open frame PS, PD, PT series power supply
DC/DC converter SD series
WMP and AD series
|
MODEL |
D-100A |
D-100B |
|
DC VOLTAGE |
5V |
12V |
5V |
24V |
|
RATED CURRENT |
15A |
2A |
15A |
1A |
|
CURRENT RANGE |
1 ~ 15A |
0.3 ~ 2A |
1 ~ 15A |
0.2 ~ 1A |
|
RATED POWER |
98W |
99W |
|
RIPPLE & NOISE (max. ) |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
VOLTAGE ADJ. RANGE |
CH1: 4.75 ~ 5.5V |
|
VOLTAGE TOLERANCE |
± 2.0% |
± 6.0% |
± 2.0% |
± 7.0% |
|
LINE REGULATION |
± 0.5% |
± 1.0% |
± 0.5% |
± 1.0% |
|
LOAD REGULATION |
± 0.5% |
± 5.0% |
± 0.5% |
± 6.0% |
|
SETUP, RISE, HOLD TIME |
200ms, 50ms, 20ms at full load |
|
VOLTAGE RANGE |
88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ. ) |
78% |
80% |
|
AC CURRENT |
2.8A/115VAC 1.6A/230VAC |
|
INRUSH CURRENT (max. ) |
COLD START 35A |
|
LEAKAGE CURRENT |
< 3.5mA / 240VAC |
|
OVERLOAD |
105 ~ 135% rated output power. |
|
Protection type: Shut down o/p voltage, re-power on to recover. |
|
OVER VOLTAGE |
CH1: 5.75 ~ 6.75VDC |
|
Protection type: Shut down o/p voltage, re-power on to recover. |
|
WORKING TEMP. |
-10 ~ +60º C |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85º C, 10 ~ 95% RH |
|
TEMP. COEFFICIENT |
± 0.03%/º C (0 ~ 50º C) on +5V output |
|
VIBRATION |
10 ~ 500Hz, 2G 10min. /1cycle, 60min. each along X, Y, Z axes |
|
SAFETY STANDARDS |
Design refer to UL1950, TUV EN60950-1 |
|
WITHSTAND VOLTAGE |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
|
HARMONIC CURRENT |
Compliance to EN61000-3-2, -3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024, Light industry level, criteria A |
|
MTBF |
272.8K hrs min. MIL-HDBK-217F (25º C) |
|
DIMENSION |
199*110*50mm (L*W*H) |
|
PACKING |
0.758Kg; 16pcs/13.76Kg/0.0287CMB |
