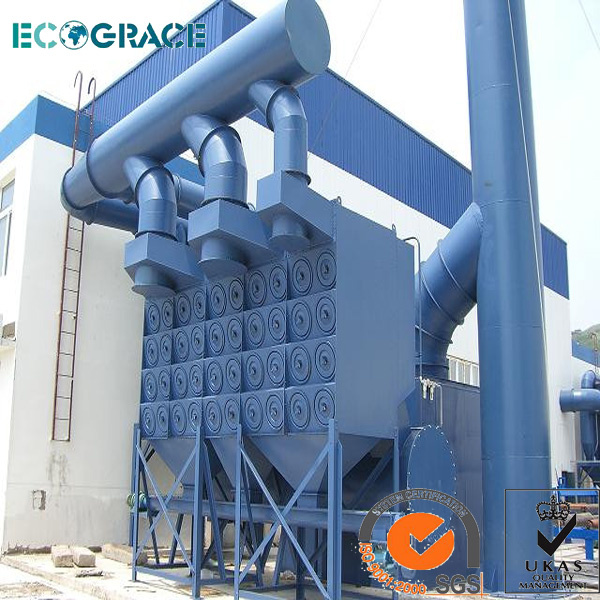

Bag House Dust Collector Equipment
Model No.: GE-ET ESP dust collector
Application: Cement plant, Steel plant electric furnace, firing system
Dust Type: Cement
Air flow: 200000m³ /h-1000000m³ /h
Gas Temperature: 250C
Working life of filter bag: 3 years
Running resistance: 1500pa
Description:
A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.
PJDMC series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on thermal power plant, cement plant, metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter. It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment.
Features:
1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
Applications:
1 iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering, superfine material recovery, liquid and solid separation.
| Model | Bag quantty | Filtering area | Width | Air volume m3/h |
| GD601 | 72 | 108M2 | 1150mm | 6500-13000 |
| GD610 | 108 | 162M2 | 1630mm | 9700-19500 |
| GD602 | 144 | 216M2 | 2198mm | 13000-26000 |
| GD611 | 180 | 270M2 | 2678mm | 16500-32500 |
| GD620 | 216 | 324M2 | 3158mm | 19500-39000 |
| GD612 | 252 | 378M2 | 3726mm | 22700-45400 |
| GD621 | 288 | 432M2 | 4206mm | 26000-52000 |
| GD630 | 324 | 486M2 | 4686mm | 30000-60000 |
| GD622 | 360 | 540M2 | 5254mm | 33000-66000 |
| GD631 | 396 | 594M2 | 5734mm | 36000-72000 |
| GD640 | 432 | 648M2 | 6214mm | 39000-78000 |
Hangzhou Grace Envirotech is a joint venture in China combined with Grace Filter Manufacturing (U. K) Limited. We are the largest manufacturer of Filter Needle Felts, filter bags, Dust Collectors, and dust collector parts; Meanwhile, we are designing and producing dust collecting system for cement plant, power plant, as well as iron and steel plant. Our company is the largest enterprise in the dust collecting industry in China,
Our factory is located in Industrial Area in Hangzhou, four big needle felt production lines. We have formed big scale production by our advanced equipment and mature technology. We design dust collecting system, produce filter bags for customers and users, and provide site technology consultant service, design, production, as well as after-sale service.
Nomex filter bag, PPS filter bag and P84 filter bags are now our star products in the world, highly popular in cement plant and power generation plant in all of the world.
Meanwhile, we are expertise in Dust Collector desgin, manufacturing and installation.
With many years of experience, Grace Filter is recognized around the world as the leading filtration dust filter bag and dust collection machine producer. Our experience make it possible for us to produce a complete range of filtration felt which meet customer specific filtration requirement. We have made great progress in supplying filter media in the cement industry, waste incinerator industry, power generation industry which make us on of the leading manufacturer and suppliers in the world.
Our professional technical team will provide pre-sales, manufacturing, delivery and after-sales service for dust collector units, dust collector system, baghouse bag filter, our professional installation workers will keep your dust collection system work perfectly and simple
