Product Specifications
| Prod Model: |
HT104-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Interface: |
2 Asi in(DVB Standard) |
Product Description

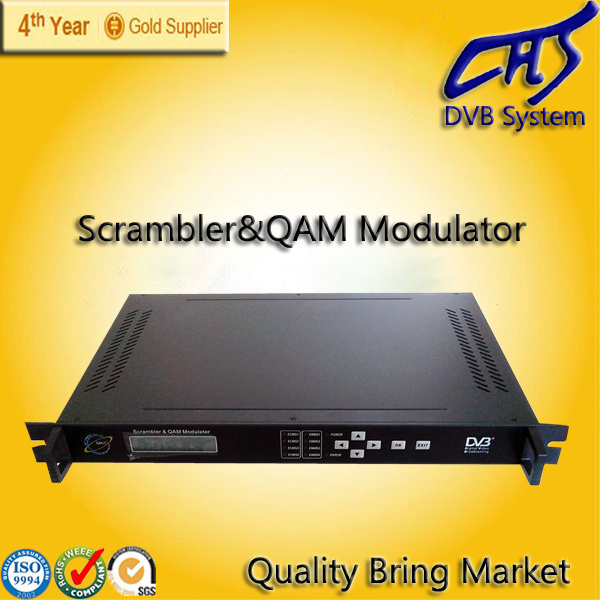

DVB-C SCRAMBLER MODULATOR
Outline
8Mbytes caches, anti-burst stream; 63 sets of programs can be scrambled, each program supports 32 elements; 2 channel ASI inputs, real-time hot backup;
Support EPG data insertion; Data filling function; Support NIT table inserts;
Support IP data injection; Configurable PID filter, re-mapping, PSI, SI information synchronization update; Real-time transport stream monitoring;
PCR correction; Fixed or variable frequency output; Provide ASI and DS3 (Optional) Enter interface; Provide RF output monitoring port (-20dB); High reliability design, stable operation.
|
Modulation Mode |
16,32,64,128,256,1024QAM |
|
Symbol rate |
1~7Mbaud/s |
|
Error-correcting codes |
RScode188/204 |
|
Input data code rate |
1.5~51Mbps |
|
Channel Data Rate |
20~56Mbps |
|
MER |
>33dB |
|
BER |
0 |
|
Input interface |
2 ASI in(DVB standard) |
|
RF Frequency |
47MHz~870MHz (agility or fixed output) |
|
Output LEV |
>=115dB m V |
|
Output LEV adjustable range |
0-16 dB(0.5 dB stepping) |
|
Impedance |
75Ω |
|
Output Return Loss |
>=12 dB |
|
General Features |
Size 44mm*482*410mm |
|
Environment 0 ~ 45(Operating);-20 ~ 80(Storage) |
|
Power 220VAC(-+10%),50Hz,25W |
|
Management |
Network RJ-45 10/100 M Keyboard + LCD |
