Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip Set: |
Ali3606c |
| USB: |
Yes |
| Etherent: |
Yes |
| Epg: |
Yes |
| RS232: |
Yes |
| Ci: |
Yes |
| Ca: |
Yes |
| HD: |
Yes |
| MPEG4: |
Yes |
| 1080p: |
Yes |
Product Description

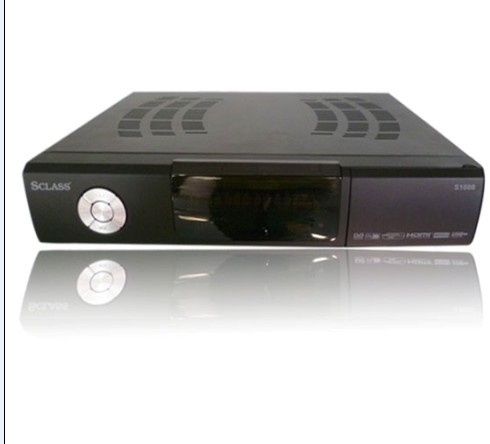

DVB-S2 HD RECEIVER SCLASS S1000 CA
MPEG4: High Definition MPEG4 AVC/H. 264 HP@L4, MPEG-2 MP@HL/ML
PAN/NTSC: Automatic PAL/NTSC conversion
Channels Number: 6000 channels TV and Radio programmable
OSD Language: English German French Portuguese Spanish Italian U_Dutch Danish W_Swedish N_Finnish Russian Turkish
ETHERNET: Support RMII interface, Support youdube and notwork redia, CCCAM, NEWCAM, MGCAM
RS232S: Support TWIN, SSSP and Software upgrades
CAS: Smartcard reader built-in/ support viaccess, nagravision, conax etc.
USB: Double USB (In Back Panel and Front Panel)
1. Main Chip Sets
Flash Memory 32MB Serial Flash
DDR2 Memory 1GB
Demodulator IC ALI3606C
2. DVB-S2 Tuner
Tuner Type sharp BS2S7VZ7306A
Input Frequency Range 950MHz-2150MHz
Input Impedance 75Ω
RF input Signal LEVEL -80/-20dBm
Active Ant Power 13/18V DC @ 400mA MAX, Overload Protection
3. DVB-S2 Channel Decoder
Demod standard DVB-S2 Standard
MPEG Profile Level MPEG2 SD, MPEG2 HD, H. 264/AVC SD, H. 264/AVC HD, MPEG4 AVC/H264
Demodulation QPSK, 8PSK, 16QAM, 64QAM
FFT SIZE 2K, 8K
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Intervals 1/4, 1/8, 1/16, 1/32
4. USB Decode
DVR supporting Stereo/MONO/Left/Right
Media Supporting Dual USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card.
File system FAT12, FAT16, FAT32, NTFS (only support first partition)
USB2.0 High Speed HOST DVR with USB HDD, Time shifting with USB HDD
5. Multimedia support format
Movie mpg, AVI, MKV, DIVX (version 4, 5, 6)
Music MP3, WMA
Photo JPG, BMP,
6. Video Decode
Video Decode High Definition MPEG4 AVC/H. 264 HP@L4, MPEG-2 MP@HL/ML
Aspect Ratio Auto, 16: 9 Pillar box, 4: 3 Pan & Scan, 4: 3 Letter Box.
Video Resolution 1920X1080P
7. Audio Decode
Audio Decode MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC
Sound Mode LEFT/RIGHT/STEREO/MONO
Sampling Frequency 32kHz, 44.1kHz, 48kHz
8. AV Output
Video Bandwidth 5.5MHz(-3dB)
Video Impedance 75Ω
Video Voltage Level 1.0 Vp-p
Audio Freq. Range 20~20kHz
Audio Impedance 600Ω
Audio Voltage Level 2V RMS(5.6Vp-p)
9. Environment
Input Voltage AC 100~240V, 50Hz/60Hz
Consumption 10W Max / 1W Standby (it's optional by customer's board)
Temperature 0° C to +50° C
Humidity <95%
Shenzhen Maiyue Electronic Co., Ltd., specializing in the production of satellite TV receivers.
It was founded in 2004, specialized in DVB products, the factory employs more than 100 people, advanced production equipment and high-tech assembly line, and also quality control all products, based on time delivery of high quality products to ensure customers. Our main products include HD DVB-S2, HD DVB-T, and other high quality, reasonable price for our company by many customers. Our annual sales reach 10 million dollars. We goal is to provide high quality products and excellent after-sales service services. Meanwhile, we can cooperate in the OEM, ODM, and the SKD.
Advanced management mechanism, fill your order.
Here, we operate state of the most advanced machines, such as SMT equipment, pipeline equipment, in your order. 6 high-efficiency production plant in 2600 square meters of distribution lines support, we are willing to fill your large orders. Currently, all of our products to overseas markets, mainly due to south American, arab, African customers. Now we are looking for partners in the international market set-top boxes more customers
Operation and quality control procedures compatible with international standards.
According to ISO 9001: 2008 certification system, we assign each of our product line 2QC staff to closely monitor every step. We have 12 quality control personnel, some of whom have been in this field for 8 years. The operation of advanced testing, such as high / low temperature case, RoHS testing, high voltage tester, we can ensure that every unit you have high-performance, long life to equipment. For peace of mind, we even provide you with one-year warranty.
