Product Specifications
Prod Model: |
DY830 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Service: |
OEM |
Speed: |
8000~10000PCS/H |
Material: |
Top 304 Stainless Steel |
Advantages: |
Three Header Label |
Export Market: |
Global |
Warranty: |
12 Months,Lifelong Service |
Power: |
4000W |
Dimension: |
4048*1500*1650mm |
Voltage: |
380V/220V |
Delivery Detail: |
15~20days |
Automatic Grade: |
Automatic |
Type: |
Automatic Labeling Machine |
Driven Type: |
Electric |
Applicable Industry: |
Toy |
Application: |
Dairy Products |
Classification: |
Three Side Labeling Machine |
Packaging Type: |
Export Pack |
Packaging Material: |
Wooden Package |
Product Description

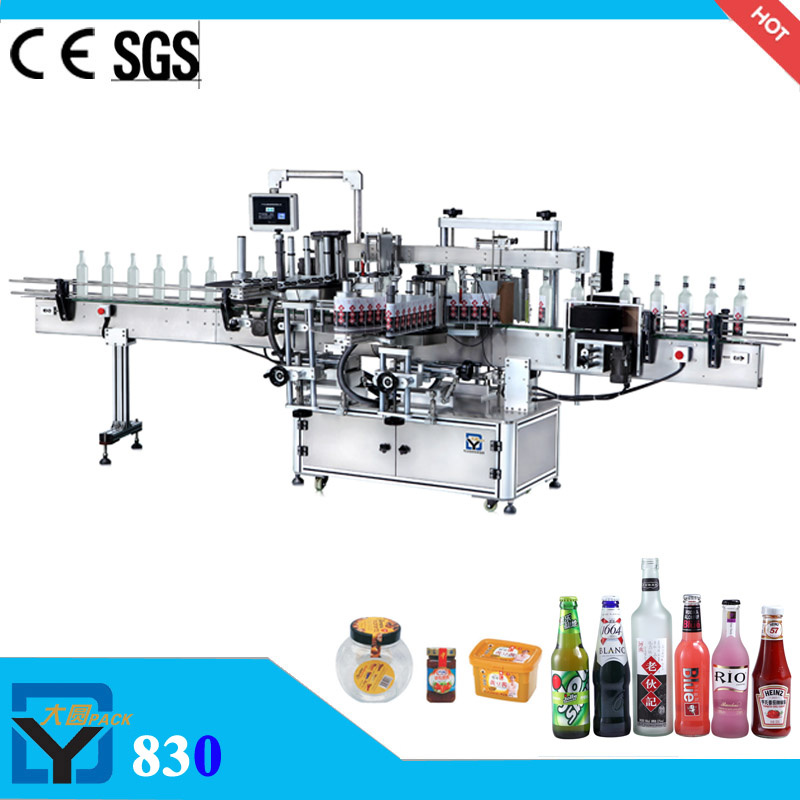

DY830 Full automatic three header labeling machinery
Company information:
Guangzhou DaYuan machinery Equipment Co., Ltd is a professional manufacturer of labeling equipment, focusing on research and development of automatic labeling machine, manufacturing, sales and technical services. Engineers have more than 10 years experience in research and development for labeling machines, strong technical force. We will supply customers the complete solution, and meet the market requirement of labeling equipment currency and fast speed.
Our main products high speed rotary labeling machine, flat labeling machine, round bottle labeling machine, double labeling machine, three header labeling machine, and non-standard labeling machine, with its superior durability and stable performance, perfect intimate the service has won wide acclaim from users.
Construction of machine
A: Principal machine section
YASKAWA 750W ultra-small inertia servo motor; YASKAWA servo amplifier; Danfoss Drives of Danmark, Panasonic motor, Panasonic Programmable Logic Controller (PLC), HMI Taiwan (in Chinese and English interface), German SICK label sensor
B: Mechanical part
Transportation institution: 200W Taiwan AC motor, frequency converter adjust the speed
Guide bottle institution: Double coordinates adjusted scratch check rails.
Sub-bottle institution: Panasonic Motor, SCR speed control.
Modulation institution: Panasonic Motor, synchronized with the Transportation institution
Compressing institution: Bevel gear, synchronized with the Transportation institution
Scraping institution: Sponge and steel plate, Teflon patch
Pressing institution: Non-powered sponge rollers, can disassemble and adapt to the different size of the label
Positive label institution: The power of 70% hard rubber roller pressure
Bottleneck labeling institution: Using special product
Applicable
This machine is Three-sides straight line labeling machine, suitable for round bottle neck labeling, Three labels in front and behind can be labeled at the same time.
Apply for different size bottle, The operation is simple and neat, and it is easy to clean.
Suitable for various industries products of three labels, (bottleneck cycle label, label in front and behind), Such as daily alcohol, chemical, oil, engine oil, washing supplies, food, food and beverage, medicine, etc.
Remark:
1) Before labeling, the bottle surface must be clean and dry.
2) The price is only for the machine, if production line is needed, and the price need to negotiate.
3) During the producing process, the buyer need to provide a set od bottle and labeling for trial.
4) Notion: Double sides labeling on elliptic bottle or other irregular bottles, maybe mould is needed, and there maybe some defective labels when labeling the thin bottles.
This Project proposal is only suitable for the machine,
5)Can suitable for 330ml and 620ml bottle size for front, back and neck label.
Technical parameters:
Model |
DY830 |
Production speed |
60m/min(8000-10000Bottle/hours) |
Labeling accuracy |
±1mm |
Label outer diameter |
Φ330 mm |
Label inner diameter |
Φ76.2 mm |
Conveyor chains plate width |
82.6mm |
Label max width |
200mm(can customize according the customers' requirement) |
Power |
380V /220V 50 Hz 4000W |
Conveyor chains plate height from the ground |
900mm±50mm(can customize according the customers' requirement) |
Outline Size(L*W*H) |
4048*1500*1650(mm) |
Weight |
400kg |
Guangzhou DaYuan Machinery Equipment Co., Ltd. is a professional manufacturer of labeling equipment, focusing on research and development of automatic labeling machine, manufacturing, sales and technical services. And the machine is widely used in food, beverage, pharmaceutical, liquor, daily chemicals, electronics, smart card and tobacco, and so on.
DaYuan company has professional design team, the designers and engineers have more than 10 years labeling research work experience, strong technical force. We will supply customers the complete solution, and meet the market requirement of labeling equipment currency and fast speed.
DaYuan company main sales high-speed rotary labeling machine, three header labeling machine, non-standard labeling machine, double sides labeling machine, flat labeling machine, round bottle labeling machine and horizontal small round bottle labeling machine, with its superior durability and stable performance, perfect intimate the service has won wide acclaim from users.
