Price: | US $ 2000/Ton |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Ton |
Pay Type: | L/C,T/T,Money Gram,Western Union |
Tested Item | unit | standard |
Vertical layer thickness of the applicable to bending strength 1.6 mm | Mpa | 118 |
Bonding strength of the applicable 10mm thickness | N | 3200 |
Parallel layer thickness of the fitness to insulation resistance 1.0 mm Normal Damp after | ∏ | 1.0X109 1.0X107 |
The vertical layer to withstand voltage withstand in transformer oil, 20 ºC ±5 ºC / 5min. Thickness 0.4-1 1.1-2 2.1-3 3 above the side processors | MV/M | 16 15 13 13 |
To withstand voltage parallel layers for > 3 MM thickness in transformer oil pressure 20 ºC± 5 ºC / 5 MIN | Kv | 14 |
Thermal stability: 20 MM thickness and the following person Thick 20 MM or more | ºC | 115 90 |

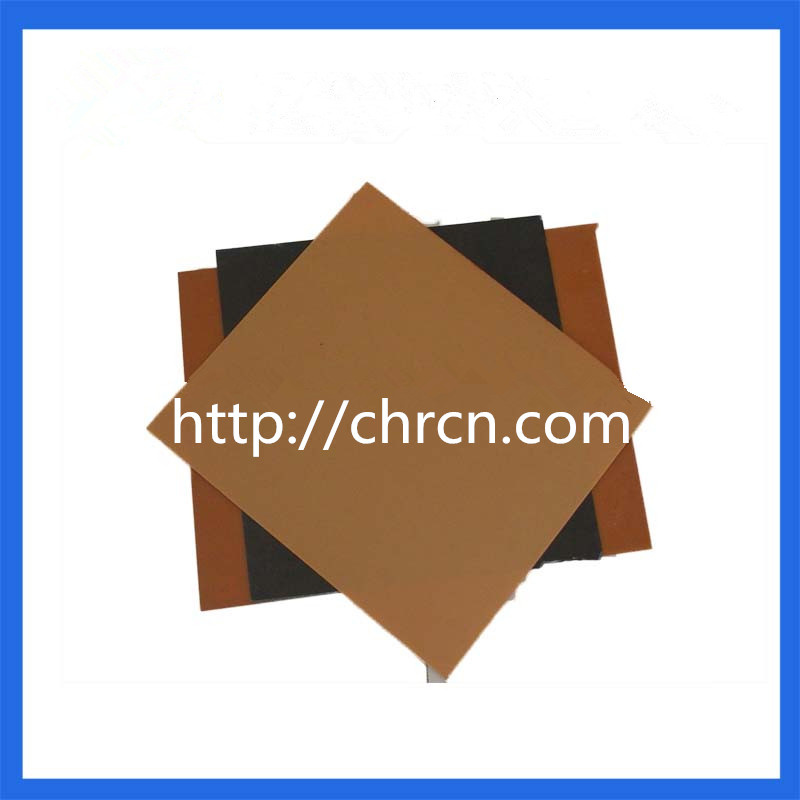

Prod Model: | 3021 |
---|---|
Markets: | North America,Eastern Europe,Southeast Asia,Africa,Eastern Asia |
Size: | 1020X2070mm 1220X2440mm |
Thickness: | 0.5-120mm |
Package: | Carton |
Heat-Resistance: | E Class 120 |
Storage Life: | 1 Year |
Application: | Switch Baseplate |
Type: | Insulation Sleeve |
Chemistry: | Inorganic Insulation |
Thermal Rating: | E 120 |
Maximum Voltage: | 20KV~100KV |
Material: | Cotton Cloth |
Brand: | Chr |
