Product Specifications
Prod Model: |
SD994PF-9K1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Digital Power Factor Meter |
Frame Size: |
96mm*96mm*90mm(OEM/ODM) |
Color: |
Black |
Usage: |
Industrial |
Frequency: |
45~65Hz |
Display Type: |
Analog and Digital |
Rated Current: |
AC 0~5A |
Sorage Environment: |
Sorage Environment |
Communication: |
RS485 Comm |
Product Description
Product Name

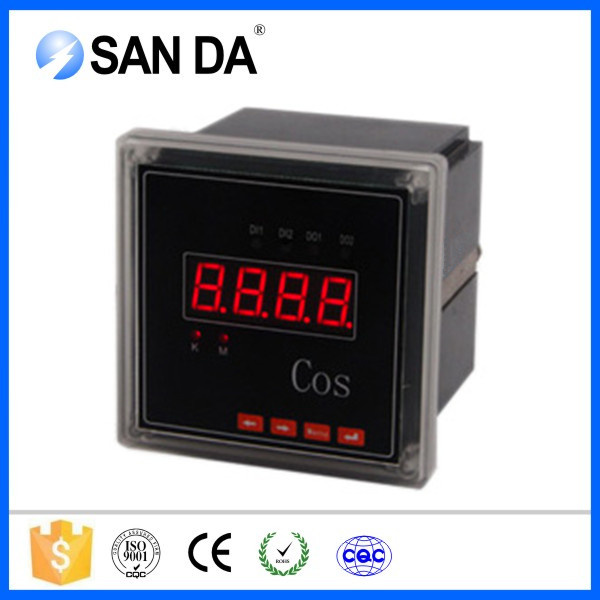

E Type Multi-function Single Phase Digital Power Factor Meter
Product Description
1. Digital Power Factor Meter is suitable for measuring and displaying
power factor in electric grid
2.Automation systems
3.Set the factor of split phase power and total power through the panel.
4.The meters have advantages of high accuracy, good stability, resistance to vibration, etc.
5. LED Display Power Factor Meter provide OEM/ODM
Technical Parameters
Function | Parameter |
Input Measurement Display | Voltage | Rated value | AC25~500V |
Overload | Last:1.2 times,instantaneous:10 times/10 seconds |
Power consumption | <1VA(per phase) |
Impedance | >500kΩ |
Accuracy | Accuracy class 0.5 by RMS measure |
Current | Rated value | AC0~5A |
Overload | Last:1.2 times,instantaneous:10 times/10 seconds |
Power consumption | <0.4VA(per phase) |
Impedance | >2mΩ |
Accuracy | Accuracy class 0.5 by RMS measure |
Power | Working range | AC/DC 86~270V |
Power consumption | ≤5VA |
Environment | Work environment | -10~55°C |
Sorage environment | -20~75°C |
Security | Pressure | Input/Power>2kv,input/output>2kv,power/output>1kv |
Insulation | Input, output, power on the chassis>50MΩ |
Precautions
1)Wiring should be strictly in accordance with the wiring diagram on the back of the meter.
2)Do not use at the place where exist excessive dust and excess of harmful gases.
3)Long term storage without using,please give meter power once every three
months, each time more than four hours.
4)Long-term preservation should avoid direct sunlight, the degree at -10 °C ~ 70 °C is
suitable for storage.
5)If the meter has no display, first check the auxiliary power and voltage is in the specified range.
6)If the display is abnormal, check the input signal is normal and the signal terminals are tightened.
7)Unless the PT have enough power, or can not use the PT signal as an auxiliary power to ensure that the meter work normally.
8) In order to avoid failure,be sure the CT circuit current terminal screws are tightened,the inlet / outlet access are reliable.
