Product Specifications
| Prod Model: |
E2K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Antistop: |
Proximity Switch |
| Workmanship: |
The Exquisite German Technology |
| Protection Structure: |
IEC Standard IP54 |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitance Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description

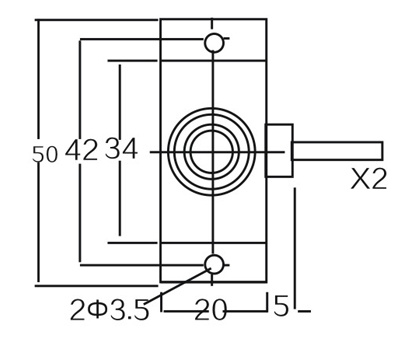

Product Description:E2K Capacitance proximity switch
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Technique parameter: | DETECTION DISTANCE 0-10MM |
| Non-Flush | DC10-30V | NPN | NO | E2K-F10MC1 |
| NC | E2K-F10MC2 |
| NO+NC | E2K-F10MC3 |
| PNP | NO | E2K-F10MF1 |
| NC | E2K-F10MF2 |
| NO+NC | E2K-F10MF3 |
| AC90-250V | SCR Control-lable silicon | NO | E2K-F10MA0 |
| NC | E2K-F10MAC |
| Control output | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltage drop DC/AC | DC<3V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Detected object | Conductor and Directric Body |
| Repeated precision | 0.05 |
| DC/AC Response frequency | 50Hz/10Hz |
| Working environment temperature | -25ºC~75ºC |
| Insulation resistance | 50MΩ |
| Shell material | ABS Plastic |
| Protection grade | IEC standard IP54 |
| Altemative model at home and abroad | |
![]()
![]()
![]()
![]()
![]()
