E8 Timer Switch, Timer Switch, Timer with 100% Guaranteed Quality
Price: |
US $ 4.5/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
Prod Model: |
E8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Maximum Current: |
16A |
Maximum Voltage: |
110, 230VAC |
Time Range: |
7m |
Timer Switch Theory: |
Mechanical |
Timer Switch Usage: |
Multifunctional |
Type: |
Timer |
Usage: |
Multifunctional |
Theory: |
Mechanical |
Carry Mode: |
Synchronous Counter |
Mechanism: |
Mechanical |
Product Description
Technical Data

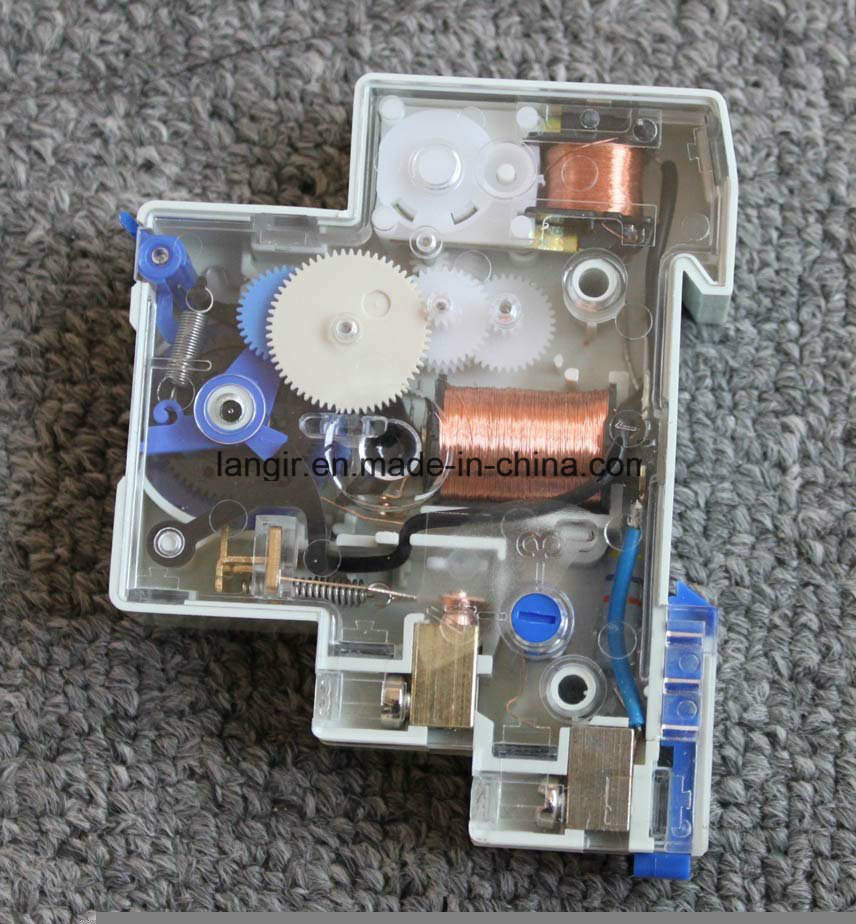

E8 timer
ClassificationTimer
Model E8
Contact CapacityAC220V 16A
Full Timing Range7m
Contact Resistance≤ 50mΩ
Insulation Resistance≥ 100mΩ
Coil Voltage110, 230V AC
LifeElectrical105times
Mechanical105times
Operating Temperature-40° C~+55° C
Storage Battery(Working Reserve)---
Min. Setting Unit0.5 Minutes
Set Up Times1M, 1.5M, 2M, 2.5M, 3M, 3.5M,
4M, 4.5M, 5M, 5.5M, 6M, 6.5M, 7M
Remarks--Classification | Timer |
Model | ALST8 |
Contact Capacity | AC220V 16A |
Full Timing Range | 7m |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥100mΩ |
Coil Voltage | 110, 230V AC |
Life | Electrical | 10 5 times |
Mechanical | 10 5 times |
Operating Temperature | -40ºC~+55ºC |
Storage Battery(Working Reserve) | --- |
Min. Setting Unit | 0.5 Minutes |
Set Up Times | 1M, 1.5M, 2M, 2.5M, 3M, 3.5M, 4M, 4.5M, 5M, 5.5M, 6M, 6.5M, 7M |
Remarks | -- |
Established in 2009, Langir Electric Co., Ltd. Specializes in manufacturing low voltage electrical control equipment and components. With these series comprising the majority of our product range, we are now supplying various models of metal pushbutton switch, piezo switch and other electrical components.
With workshop facilities covering an area of 1, 500 square meters and sophisticated manufacturing equipment introduced into our factory, we have gradually set up the system of providing clients with the highest grade products according to the ISO system. With our strict quality self-requirement, we passed CE, RoHS certificate. Reach and National CCC certificate are in progress.
Due to consistent high quality and reasonable prices, our brand LANGIR products have gained an excellent reputation in various markets. From 2009-2012 year, our annual sales value increased 50%-100% year by year.
We are looking forward to being able to cooperate with your company. If you are interested in any of our series or have a customized requirement to complete, please don't hesitate in contacting us.
We sincerely invite you to be our agent.
