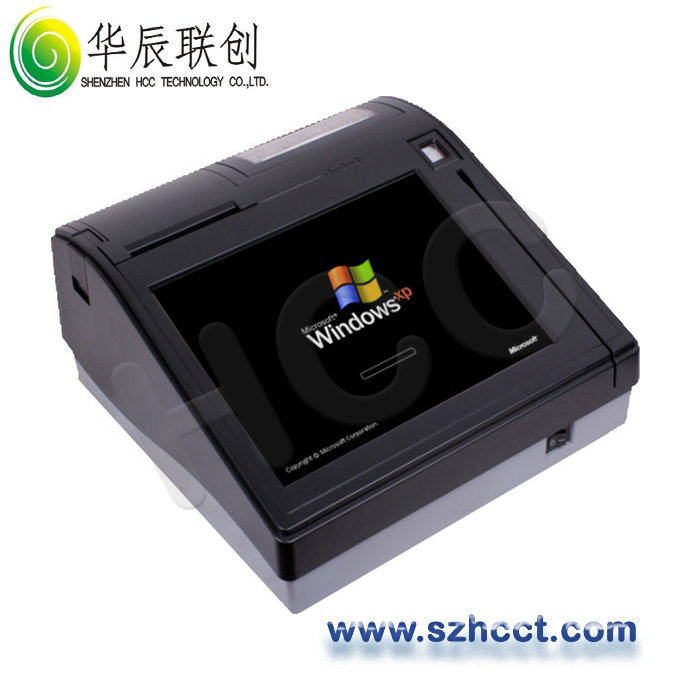

ECR P1080 All-in-One POS Terminal
| Price: |
US $ 590/Piece |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
POS-P1080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating System: |
Win XP/Win 7(Option) |
| USB: |
4xusb 2.0 Port |
| Memory: |
1xddr2 1GB |
| Network: |
10/100/1000base-T Fast Ethernet |
| Power Supply: |
48W External Power Adapter |
| Dimensions: |
365X376X119mm |
Product Description
General
The all-in-one POS terminal combines touch screen, thermal printer, MSR and finger-print indentifier. It is affordable in a well-executed design for basic transaction. It is tegrates the feature of ARM based computer and small size of tradition Electronic Cash Register.
| SYSTEMS |
| Operating System | Win XP/Win 7(option) |
| CPU | Intel Atom N270 CPU Fanless |
| Memory | 1xDDR2 1GB |
| Network | 10/100/1000Base-T fast Ethernet |
| Power Supply | 48W external Power adapter |
| Dimensions | 365x376x119mm |
| HDD | 1x2.5'' SATA HDD 250GB |
| I/O PORTS |
| USB | 4xUSB 2.0 port |
| Serial Port | 3xDB-9(COM 1/2/4) |
| PS/2 | 1xPS/2 port |
| LAN | 1x10/100/1000 Mbps |
| Audio | 1x2W Speaker |
| VGA | 1xDB-15 VGA Interface |
| Cash Drawer | 1xRJ11 Cash drawer port(12V/24V) |
| DISPLAY |
| Viewing Angle | 15~18 degree adjustable |
| LCD | 10.4'' TFT LCD |
| Max. Eesolution | 10.4'' 800x600 |
| Touch Screen | 5-wires resistive 20,000,000 times touch life |
| ENVIRONMENT |
| Operation Temperature | 0ºC~ 45ºC |
| Storage Temperature | -20ºC~ 60ºC |
| Humidity | 20ºC~ 90ºC |
| PRINTER |
| Mechanism | 8dots/mm 80mm Thermal |
| Speed | 170mm/sec(MAX) |
| Paper Width | 58mm/80mm adjustable |
| Paper Diameter | 60mm |
| Auto Cutter | Full cut/Partial cut selectable |
| CUSTOMER DISPLAY |
| Customer Display | Angel adjustable from 19.5 to 71.5 degree |
| Display Panel | 10 digital LED or 10 digital LCD |
