Product Specifications
| Prod Model: |
EP-DL520G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| White Color: |
1port ADSL Router |
| Port Structure: |
Modular |
| Network: |
CDMA |
| Transfer Rate: |
54Mbps |
| Ports: |
8 |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Type: |
Wireless |
Product Description

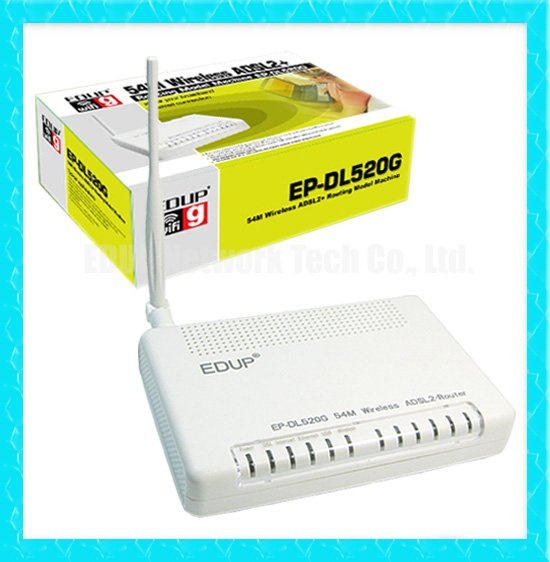

This is a well-designed high-speed and high performance ADSL2+ router, which provides 1-port switch function and supports kinds of network protocols, steady runs, and is compatible with various DSLAM, which is preferred by the individual users, the SOHO, and the small enterprise to access the internet.
Features
Full speed, auto-sense ADSL 2+ routing, bridging
Up to 24Mbps downstream and up to 1024kbps upstream data rate Maximum transmission range: 6.5 kilometers
Friendly GUI for web configuration
Compatible with virtually all standard internet applications
Support for up to 8 permanent virtual circuits (PVC)
NAT, IP filtering and password authentication to modem
Support remote management
Support build-in PPPoE
Specifications
ADSL specification
Line Coding Discrete Multi-Tone (DMT)
Standard Compliant Full rate ADSL ANSI T1.413 Issue 2
ITU G. 992.1 (G. Dmt) Splitter less G. 992.2
ITU G. 994.1 G. 996.1 ITU 992.5(ADSL 2+)
Data Rate Maximum transmission rate: Downstream up to 25 Mbps, and
Upstream up to 1024 kbps
ATM specification
ATM Adaptation Layer Support AAL5
VCs Support 8 Permanent Virtual Circuits (PVCs)
Service Class UBR, CBR, rt-VBR, nrt-VBR
OAM ITU-T I. 610 OAM Principles & Functions (include F4/F5)
Basic Protocol
RFC 2684 Multiple protocol encapsulation over AAL5:
Support Logical Link Control (LLC) encapsulation
Support VC-based multiplexing
Support Bridged and Routing
RFC 2364 PPP over AAL5:
Support LLC encapsulation
Support VC-based multiplexing
RFC2516 Support PPP over Ethernet Relay
Support PPP over Ethernet
RFC 1577 Classical IP over ATM
Bridged Function
IEEE802.1d Transparent, learning bridge with spanning tree support.
PPPoE relay
Routing Function
IPv4, TCP, UDP, ICMP, ARP, RARP, proxy-ARP
Routing Routing Information Protocol (RIP, RIPv2)
Static Routing
DHCP DHCP Server/Client/Relay
DNS DNS relay
IGMP IGMP v1, v2 Proxy
Security
IP sharing Network Address Translator (NAT)
Authentication PPP with PAP/CHAP
IP Filter Raw/IP Filtering
SPI
VPN Pass Through VPN: L2TP Client/Server & L2TP/PPTP Pass Through
VPN: IPSec Pass Through
Deny of Service DOS (UDP, TCP), Detection of Known Attacks
Detect port scan attack
ID/Password Authentication
Management
Management Configuration through menu driven console via RS232
Configuration through Web interface
Configuration through Telnet connection
SNMPv1 and MIB II( RFC1213 )
Implement Log & Trace function
Remote Management PVC&ECO
F/W Upgrade TFTP, FTP and HTTP for firmware download
LED Indication On Off Flashing
Power Power On Power down N/A
PC (LAN TX/RX) LAN enable LAN disable Data transmission
Status (WAN link) ADSL line up ADSL line disconnect Handshaking
Line (WAN TX/RX) N/A No data transmission Data transmission
SYS Defects OK Self-Diagnoses
Button
Reset One Button for reset and default
Power Switch One Switch for power on/off
Interface Port
LAN 1 RJ-45 port for 10/100 Ethernet connection
WAN 1 RJ-11 port ADSL line
Serial(Inner) 1 craft port for console management
USB(optional) 1 USB-B port for USB1.1 connection
Power Supply
Input Voltage AC 220V/50Hz
Power Consumption 12VAC, 1000mA
Operating Environment
Operating Temperature 32F to 104F (0 C to 40 C)
Non-Operating Temperature -4F to 149F (-20 C to 65 C)
Humidity 5% to 95% (non-condensing)
