Product Specifications
| Prod Model: |
NZSG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Motor Type: |
Stepper Motor |
| Type: |
Efficient Thickener |
| Condition: |
New |
| Motor Power: |
1.1kw~7.5kw |
| Diameter: |
2.5m~20m |
Product Description

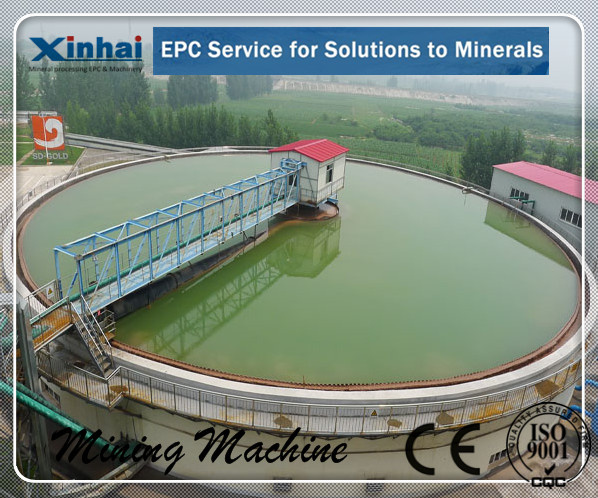

Efficient Improved Thickener
Thickener— Product improvement
This thickener is patent product of Xinhai, patent No. 201010521662.5. After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration
Thickener— Advantages
Efficient improved thickener
Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block
Oblique feeding instead of horizontal feeding solves the blockage problem
A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.
Thickener— Work Principle
Efficient improved thickener
The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel. Solid material in the bottom of the tank by the scraper moves out of center; Clarified overflow through the tranquil flow device flows out from the ring external overflow weir.
Thickener— Product Structure
Efficient improved thickener
Tank
Deaerating tank
Feed mixing barrel
Motor driven device
Rake lifting device
Tranquil flow device
Overflow weir
Rake frame
Feeding devide
Vertical axis
Thickener— Product Application
Efficient improved thickener
It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
|
Model |
Tank diameter
(mm) |
Tank depth
(mm) |
Sedimentation area
(m 2 ) |
Capacity
(t/d) |
Motor model |
Motor power
(kw) |
Steel tank weight
(kg) |
Weight
(kg) |
|
NZSG-2.5 |
2500 |
1850 |
4.9 |
5-10.8 |
Y90L-6 |
1.1 |
1000 |
2225 |
|
NZSG-3A |
3000 |
1800 |
7 |
5-23.3 |
Y100L-6 |
1.5 |
1664 |
3168 |
|
NZSG-3 |
3600 |
1800 |
10.2 |
5-28.5 |
Y100L-6 |
1.5 |
2097 |
3640 |
|
NZSG-5 |
5000 |
2956 |
16 |
16-90 |
Y90L-4 |
1.5 |
5160 |
8031 |
|
NZSG-6 |
6000 |
2956 |
28.3 |
98 |
Y90L-4 |
1.5 |
5769 |
9200 |
|
NZSG-7 |
7000 |
3000 |
38.5 |
140 |
Y112M-6 |
2.2 |
8548 |
13361 |
|
NZSG-8 |
8000 |
3318 |
50.2 |
185 |
Y132S-6 |
3 |
12966 |
19289 |
|
NZSG-9 |
9000 |
3376 |
63 |
210 |
Y132S-6 |
3 |
15304 |
21960 |
|
NZSG-12 |
12000 |
3600 |
113 |
370 |
Y132S-6 |
3 |
25389 |
34823 |
|
NZSG-15 |
15000 |
4000 |
176 |
580 |
Y132(M2)-6 |
5.5 |
35800 |
58800 |
|
NZSG-18 |
18000 |
4400 |
255 |
960 |
YCT200-413 |
7.5 |
49694 |
65992 |
|
NZSG-20 |
20000 |
4400 |
315 |
1400 |
Y160(M2)-8 |
7.5 |
59365 |
81238 |
