Price: | US $ 3000/Piece |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Laser Marking Machine
Laser marking machine description
Laser marking machine----high-speed scanning galvanometer laser marking wich has advantages of faster scanning speed, higher repetition accuracy, better durability.It is widely used in industrial bearings, gears, all kinds of auto parts, hardware tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communication products, home appliances, wire and cable, food packaging, jewelry, tobacco and many graphic and text markings in other fields.
Technical parameter
Model | DB-H20W/DB-H30W/DB-H50W |
Output Power | 20W/30W/50W |
Laser Wave Length | 1064mm |
Laser Ray Mass | <1.4 |
Adjustable Laser Frequency | 20KHz~100KHz |
Marking Size | 110mm*110mm~175mm*175mm |
Marking Depth | 0-1mm |
Minimum Line Width | 0.01mm |
Re-marking Precision | ±0.001mm |
Power | AC220V/50Hz |
Whole Power Consumption | 600W |
Marking Speed | 500c/s (Single Line Character in 1mm Height) |
Machine Dimension | 800mm*680mm*1200mm |
Cooling Way | Air Cooling |
1. America Synrad RF metal laser or China CO2 laser,for ptional.NO maintenance, servicetime is more than 50,000 hours.
2. High speed galvo scanner:German or China made Optional
3. Easy Operate without route maintenance
4. Higher precision,faster speed.
5. Air cooling, small size,low power consumption.
6. Red light preview, how the marking position before lasering.
7. Up and Down Lifter laser head (desktop model) andup and down worktable( Portalble model),easy to marking engraving different workpiece.
8.Rotary attachment optional,can engrave and mark inside and outside ring jewellery.
9. High temperature resistance, good for marking,medical equipment etc that requires sterilization
10. The durable & fine marking quality, widely use injewelry, mobile phones, and other high value items.

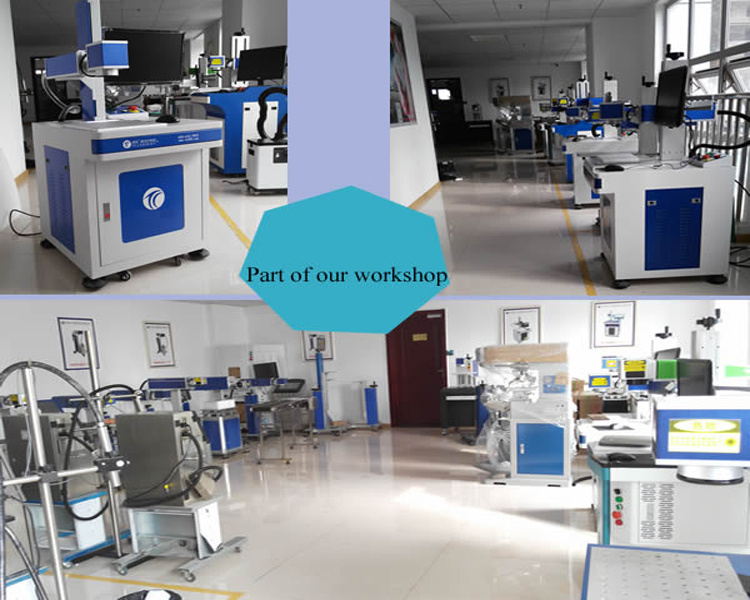

Factory processing
We have our own R&D/Production/Assembly department. In order to meet the market requirements, we will launch two new machines at least each year. Besides, we also can customize the machines for customers.
All good will be packed by wood case or standard carbon box before shipping:
1.Wooden case is after fumigation treatment,needn't timber inspection,saving shipping
time.
2.Spare parts of the machine were covered by some soft materials,mainly using pearl wool,to avoid damages that could happen in the delivery process.
Usually we send the good by express delivery such DHL,UPS,TNT,FEDEX,EMS.For large quantity by sea.
Service
A.We supply machine operation manual in English version for installation and operation.
B.User can dispatch representatives to our factory for 2-3days for free training.
Contact
Tilly Li
Chengdu Derbo Group Co.,Ltd
Website: http://www.derbo.cn
Mob:+86 18244238900
Tel: +86 28 85223949 Fax: +86 28 85249639
Add: 2309 New Hope International Building B, Tianfu Avenue, Chengdu City ,China
Prod Model: | DB-H20W |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: | Metal, Glass, Paper, Leather, Rubber, Auto Parts |
Marking Size: | 70X70mm/110X110mm |
Marking Speed: | Depends on The Working Size |
Maximum Marking Height: | 1.5mm-70mm |
Marking Charracter Set: | 1-8lines |
Maximum Height: | Do Not Over The Maximum Working Size |
Laser Deflection System: | High Speed Digital Vibration Mirror |
Moisture: | 5%-90% |
Type: | High Quality Laser Marking Machine |
Temperature: | 5-45c |
