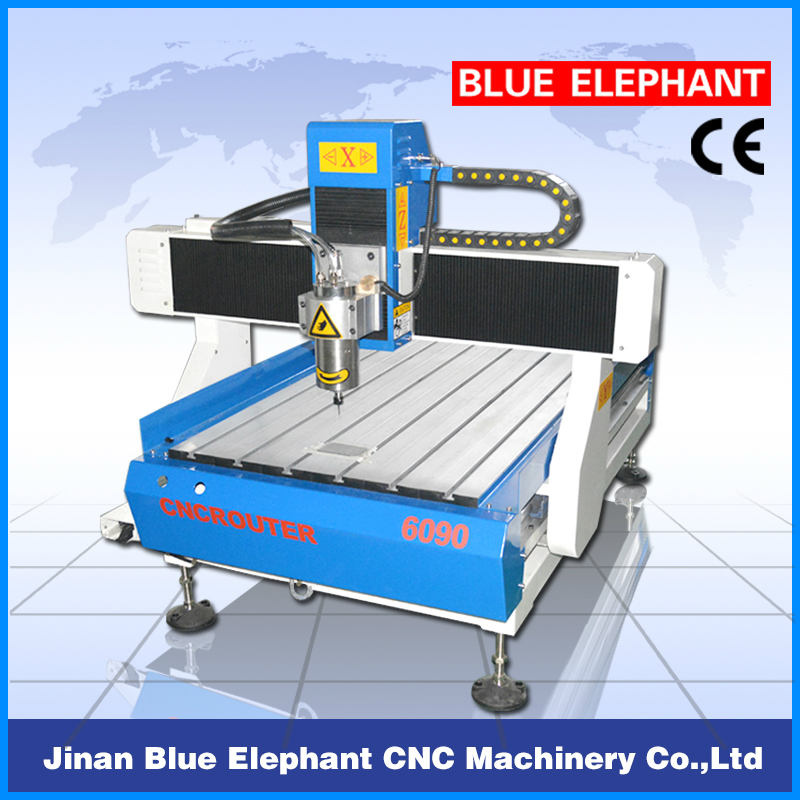

Ele Wood CNC Router 6090 / CNC Machinery 6090 / Prices
Specifications: | X,Y,Z Working Area | 600mmx900mmx120mm |
| Table Size | 720mmX1140mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01mm/300mm |
| X,Y,Z Repositioning Accuracy | ±0.01mm |
| Table Surface | T-slot Table |
| Frame | Welded Structure |
| X, Z Structure | TBI Ball Screw |
| Y Structure | TBI Ball Screw |
| Max. Power Consumption | 0.8Kw |
| Max. Rapid Travel Rate | 10000mm/min |
| Max. Working Speed | 6000mm/min |
| Spindle Power | 3kw water Cooling Spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Servo System |
| Working Voltage | AC220V/50/60HZ,1Phs |
| Command Language | G code |
| Operating System | DSP System(options: Ncstudio/Mach3 PC Software) |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER16 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 softwar(Option: Artcam software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Packing Size | 1600*1300*1700 mm |
| G.W. | 400kgs |
Features:1).1.5 kw water cooling spindle(top brand in China),with high precision and strong power.
2).It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other
similar materials. with fast speed and high accuracy, and it can meet the demand of
all the needs of engraving.
3).It is equipped with the international leading mach 3 controller which could memorize the breakpoint if it happens accident so that to guarantee to process in the other day.
4).With T-slot working table, holding the materials with clamps, you can do
variety of high-precision works.
configuration:1. 1.5 kw water cooling spindle
2. 1.5 kw fuling inverter
3. Taiwan HIWIN square linear guide
4. Taiwan TBI ball screw
5.T-slot working table
6. mist cooling spayer
Applications:1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
Customer Service:![]()
1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
Company information![]()
FAQ:
Q1: I want to buy this machine,what suggestion can you give?Answer: Please tell me what material do you process? What's the size of your material?(Better show me your product picture)
Q2: which kind of materials can be processed on this machine ?Answer: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
Q3: What's the delivery cost & time?Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
