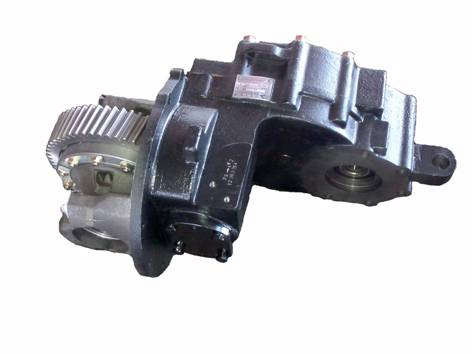

Electric Forklift Transmission-Horizontal-Mounted Type (WH-DC20-01, WH-DC25-01)
| Price: |
Negotiable |
| Trade Terms: |
CIF |
| Min Order: |
1 |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
WH-DC20-01, WH-DC25-01, WH-DC30-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circular Gear+Bevel Gear |
| Toothed Portion Shape: |
Hobbing + Shaving+Grinding |
| Manufacturing Method: |
Machining |
Product Description
WH-DC20-01, WH-DC25-01, WH-DC30-01 horizontal-mounted transmission series for electric forklift are three-phase speed reduction made up of three pair of cylindral gears and the differential, decreasing the front-hung distance of lifting system by more than 40mm due to different electric motor configuration.
|
Model |
WH-DC20-01
WH-DC20-02 |
WH-DC25-01
WH-DC25-02 |
WH-DC30-01
WH-DC30-02 |
|
Mating Motor Model |
6.3~11.75Kw motor |
|
Rated revolutions per minute |
1200~3478 r/min |
|
Mounted type |
Horizontal mounted |
|
Load capacity (Kgs) |
2500 |
2000 |
3000 |
|
Ratio |
16.937
23.491 |
12.233
25.1204
16.8266
25.1204 |
14.68
30.1445 |
|
Lubricating oil specification |
GL-4 85W/90 Gear oil |
|
Lubricating oil volume |
4.4L |
|
Profile measurement (L× W× Hmm) |
800× 464× 384 |
640× 386× 300 |
677× 434× 395 |
|
Net weight (Kgs) |
100 |
93 |
100 |
Ganzhou Wuhuan Machine Co., Ltd. is specialized in the manufacturing forklift transmissions, drive axles in China, with more than 200 professional and skilled employees, the company has nearly 40 years experience on forklift transmission and drive axles design and production.
We offer a wide range of transaxle models including counter Balanced forklift (Diesel, petrol and LP gas) transmissions (Mechanical & hydraulic types) with load capacity from 1.0 ton to 10 ton, Electric forklift transmissions (Vertical-mounted type and Horizontal-mounted type), three-wheel reach forklift/stacker transmissions, 1.5 ton~10 ton drive axles, steering axles for electric forklifts and tow tractors, reduction gearboxes and rear axles for tow tractors, carrying vehicles, excavators, loaders, cranes, graders, pavers, road sweepers, Golf carts, and other engineering machinery equipments. Annual production capacity exceeds 60, 000 units of various forklift transmissions, 30, 000 units of drive axles, 20, 000 units of reduction gearboxes, and rear axles.
Our customers include top ranked forklift and construction machinery makers, such as Linde, Anhui Heli, Doosan Infracore Co., Ltd, Zhejiang Hangcha, Yuchai, YTO, Clark, Tailift, TCM, JAC, Hytsu, Feeler, KION Baoli, Noblift, KION Voltas, Godrej, Liugong, Maximal, Xiagong, Sunward, etc.
The company upholds such quality concepts with creating a globally recognized brand by manufacturing precious products. To improve products quality, the major manufacturing equipments are introduced from Germany and Japan; CAD, CAPP, CAE, PDM technologies are adopted widely in designing and producing process; Also, the company is ISO9001: 2000 and QS9000 certified. It is committed to continual improvement to provide even better products and service to the world.
