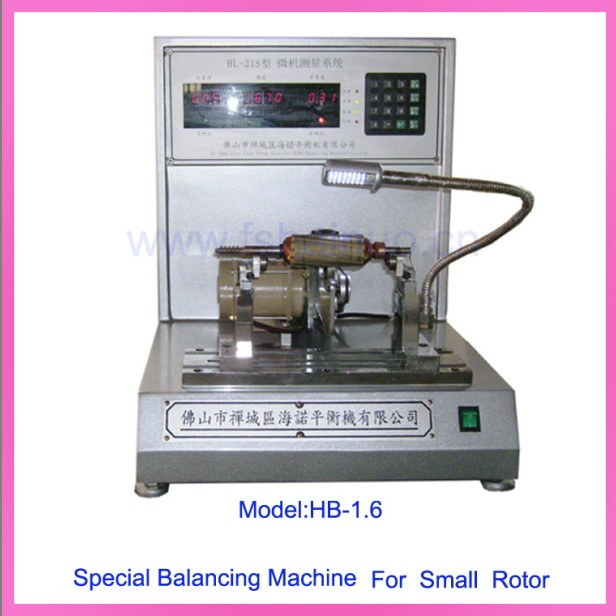

Electrical Rotor Balancer (HB-1.6)
| Price: |
US $ 6000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1Set |
Product Specifications
| Prod Model: |
HB-1.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Weight Of Workpiece (Kg): |
1.6(Suitable for 0.16~1.6) |
| Max. Diameter Of Workpiece(Mm): |
250 |
| Distance Between Two Supports(Mm): |
50~250 |
| Journal Diameter Of Bearing Supports(Mm): |
3~30 |
| Balancing Speed(Rpm): |
400~5000 |
| Display Mode: |
LCD Measuring Unit |
| Power Supply: |
220v 50Hz |
| Maru(G. Mm/Kg): |
≤ 0.3 |
| Unbalance Reduction Ratio(Urr)(%): |
≥ 90 |
Product Description
Electrical Rotor Balancer (1.6kg)
1. Without frequency selective operation
2. Automatic calibration
3. Automatic allocation
There are four advantages for Electrical Rotor Balancer.
1. Without frequency selective operation.
2. Automatic calibration and separation.
3. Automatic allocation.
4. Without stopping the motor, high efficiency.
The more technical parameters are in the following.
Model |
Capacity
kg |
Rotor Ø
max
mm |
Distance
between
Supports
mm |
Journal Ø
range
mm |
Balancing
Speed
rpm |
Drive
Performance
(kw) |
HB-1.6 |
0.16~1.6 |
150 |
30~250 |
3~30 |
400~5,000 |
0.04 |
HB-5 |
0.5~5 |
250 |
50~600 |
3~30 |
300~5,000 |
0.12 |
HB-16 |
1.6~16 |
400 |
80~600 |
8~40 |
300~5,000 |
0.37 |
HB-50 |
5~50 |
850 |
150~1,000 |
8~70 |
300~5,000 |
1.5 |
HB-100 |
8~100 |
850 |
150~1,500 |
8~100 |
300~5,000 |
1.5 |
HB-160 |
10~160 |
1,080 |
200~1,500/2,400 |
10~180 |
300~2,500 |
2.4/3 |
HB-300 |
16~300 |
1,200 |
200~1,500/2,400 |
10~180 |
300~2,500 |
optional |
HB-500 |
20~500 |
1,450 |
300~1,500/2,400 |
15~240 |
300~2,500 |
optional |
HB-1000 |
30~1,000 |
1,600 |
400~3,600 |
20~290 |
300~1,450 |
optional |
HB-2000 |
50~2,000 |
2,000 |
500~3,600 |
30~350 |
300~1,450 |
optional |
HB-3500 |
80~3,500 |
2,600 |
700~3,600 |
50~500 |
300~900 |
optional |
Hainuo Balancing Machine Co., Ltd., is a technical enterprise with optical, mechanical and electronic integration. Our company is specialized in the design and manufacture all types of universal type and tailored version balancing machine equipment company. With a professional technical development, production and quality control for many years to tack experience and management experience, our company has already modernize management, standardized production, product serialization.
Quality is the fundament to exist, credit is the key to win the market, and good service is the way to develop further. In recent years, our products across the country, its market share continue to grow. Our company major produce middle/high-grade semi-automation and automation series of balancing machine which including universal hard-bearing balancing machine series, tailored version balancing machine for continuous and arial flow fan, vertical singe-plane and two-plane balancing machine. Our products are widely used for impeller, drive shaft, crankshaft, power-driven tool, blower, draught fan, CPU fan, the impellers of kitchen ventilator, the motor of sewing machine, cutters, juicer, dust collector, hair dryer, micro motor, rubber roller, clutch, the rotor of turbocharger and also applied in the field of ships and aviation. Our products can balance the workpiece for the weight from 5 gram upto 5000 kilograms, and also are configured with Chinese or English LCD display and micro computer control system, can meet the need of different client.
Our faith: Start from step by step, reach to higher and higher, we adhere to the people-centered, scientific and technological innovation, excellence. We continually improve manufacturing technology and offer new accurate, high effiency, stringent specification products to meet the need of customers. Our products are sold throughout the country, and exported to India, Vietnam, Malaysia, Iran, Indonesai, Egypt, Singapore, Japan, Eastern Europe, Hong Kong and Taiwan and have won customers' favor for good quality. Our company's business networks are widely in Changzhou, Ningbo, Fu'an, Jinan, Zhengzhou, Qingdao, Hangzhou, Dongguang, Shenzhen, Nanjing and other places to set up offices.
However we promise that old and new clients will be treated all the same by professional and high precision of machine and the best service. We are very happy to get your call and warmly welcome to our company with your guidance.
