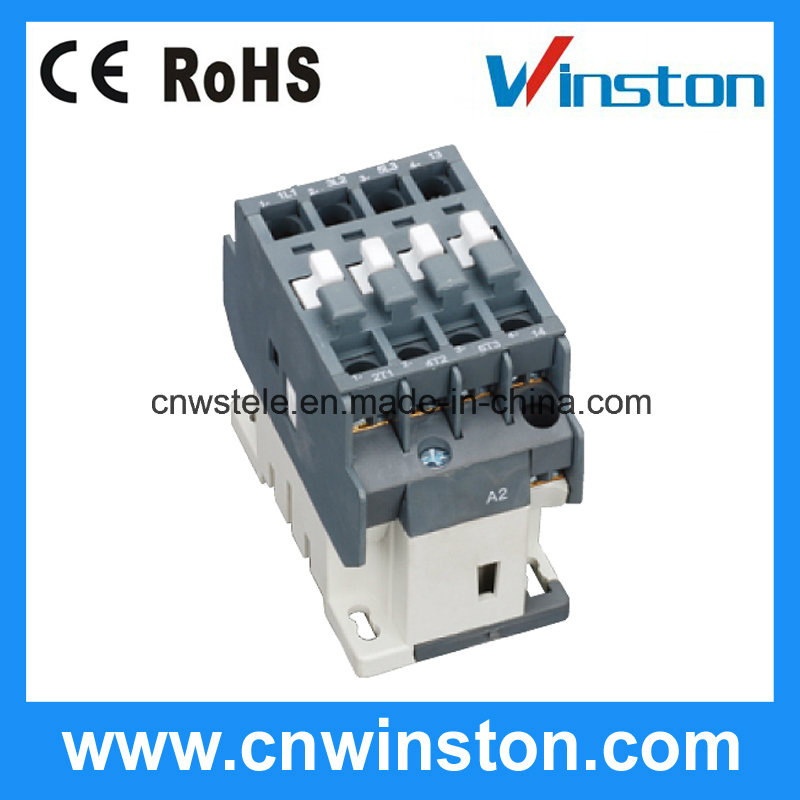

Product Specifications
| Prod Model: |
CJX7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protective Characteristics: |
Sealed relay |
| Load: |
High Power Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay, Lathe Relay |
| Theory: |
Magnetic Contactor |
Product Description
1. ApplicationCJX7-9~300 AC contactor(hereafter refer to as contactor)is mainly used in power system with AC 50Hz(or 60Hz), therated working voltage up to 660V, under the application category of AC-3, when the rated working voltage 380V, the rated operating current to 300A electrical, for the long-distance range making and breaking the electric circuit, and combines the electorm agnetism starter with the suitable thermal overload relay or the electronic protector to protect against the possible overload electric circuit during operation(running).
2. Technical parameter2.1 The allowable application category of main circuit and the auxiliary circuit of the contactor and it's code see Table 1
Table 1 application category of main circuit and the auxiliary circuit of the contactor and it's code

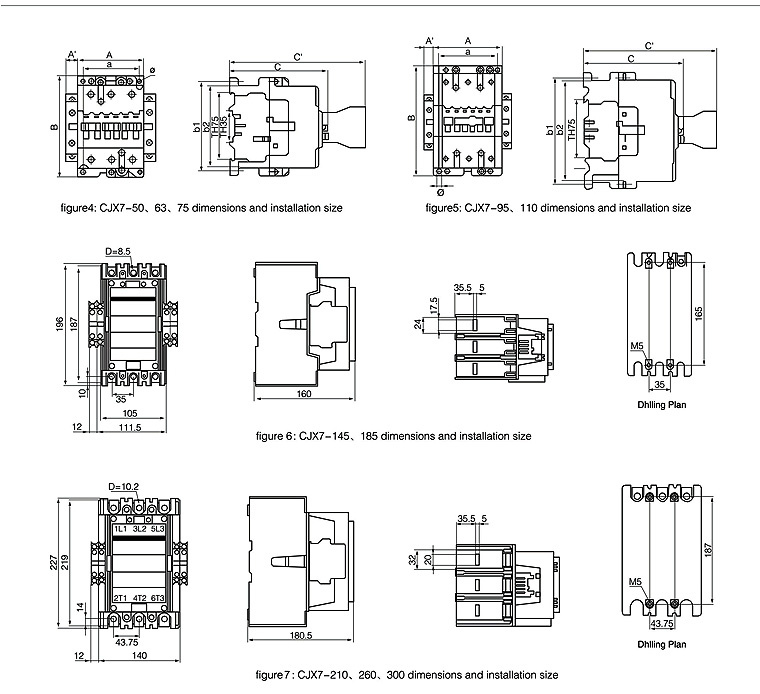

3.Installation
|
Type |
Frame code |
Rated insulation |
Convensional free air heat |
AC-3 rated operating current Ie A |
|
|
AC-3 control the max. power KW of generator |
|
|
|
|
|
voltage Ui V |
current Ith |
220V |
380V |
660V |
220V |
380V |
660V |
|
CJX7-9 |
16 |
1000 |
26 |
9 |
9 |
7 |
2.2 |
4 |
5.5 |
|
CJX7-12 |
28 |
12 |
12 |
9 |
3 |
5.5 |
6.5 |
|
CJX7-16 |
30 |
17 |
17 |
10 |
4 |
7.5 |
9 |
|
CJX7-26 |
26 |
45 |
26 |
26 |
17 |
6.5 |
11 |
15 |
|
CJX7-30 |
40 |
65 |
32 |
32 |
21 |
9 |
15 |
18.5 |
|
CJX7-40 |
65 |
37 |
37 |
25 |
11 |
8.5 |
22 |
|
CJX7-50 |
75 |
100 |
50 |
50 |
35 |
15 |
22 |
30 |
|
CJX7-63 |
125 |
65 |
65 |
43 |
18.5 |
30 |
37 |
|
CJX7-75 |
125 |
75 |
75 |
46 |
22 |
37 |
40 |
|
CJX7-95 |
110 |
145 |
96 |
96 |
65 |
25 |
45 |
55 |
|
CJX7-110 |
160 |
110 |
110 |
82 |
30 |
55 |
75 |
|
CJX7-145 |
185 |
250 |
145 |
145 |
120 |
40 |
75 |
100 |
|
CJX7-185 |
275 |
185 |
185 |
170 |
50 |
90 |
120 |
|
CJX7-210 |
300 |
350 |
210 |
210 |
210 |
60 |
110 |
150 |
|
CJX7-260 |
400 |
260 |
260 |
260 |
78 |
140 |
190 |
|
CJX7-300 |
450 |
300 |
300 |
280 |
88 |
160 |
220 |
