Product Specifications
| Prod Model: |
IM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mount: |
Rotameter |
| Sensor: |
Plug-in |
| Type: |
Volume Type Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Size: |
DN10-50 |
| Main Application: |
Nature Gas |
Product Description

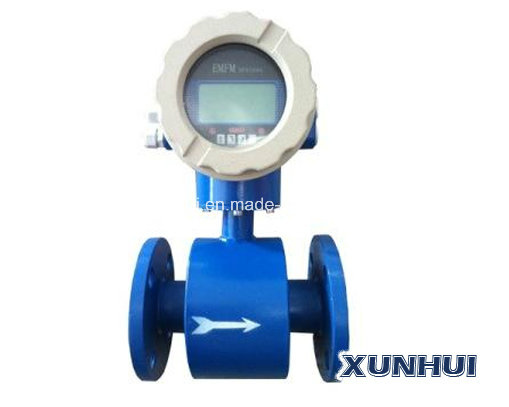

Electromagnetic flowmeter
The electromagnetic flowmeter IM / IM - F is consisted of electromagnetic flow converter and electromagnetic flow transmitter. Its structure option are integrated type, split type and insert type. Depends on specific requirement, it's available with different customized products: High pressure, sanitary, coupling connect, thread connect, explosion proof, etc.
Application field: Liquid flow in closed pipe pass system.
Features:
-Low pressure loss -Long service life, accuracy ensured
-Flow speed: 0.3 - 10 m/s -Either backward or foward flow measure
-LCD display -EEPROM protect preset data and value
-Damper function, response time set from 1 to 50 seconds.
|
Standard |
JB/T 9248-1999 |
Model |
IM: integrated type, IM-F: split type |
|
Measured media |
conductive liquid |
Nominal Dia. |
15 - 15mm 20 - 20mm 25 - 25mm
32 - 32mm 40 - 40mm 50 - 50mm
65 - 65mm 80 - 80mm 100 - 100mm
125 - 125mm 150 - 150mm
200 - 200mm 2000 - 2000mm |
|
Accuracy |
0.2%; 0.5%; 1% |
|
Repeatability |
0.15%; 0.25% |
|
Temperatue |
-25 ºC ~ 180 ºC |
|
Pressure range |
DN25 ~ DN150 |
Measure range |
W: expanded range S: standard range |
|
Flow range |
0.3 ~ 12 m/s |
Accuracy |
02: 0.22%; 05:0.5%; 10: 1% |
|
Conductivity |
> 5 µ S/cm |
Type |
N: sensor type, 12/24V DC, pulse signal output |
|
Electrode material |
316L, Hastelloy B, Hastelloy C, Ta, Ti, Pt, Ni, Tungsten carbide |
A: transmitter type, 24V DC, 4-20mA output |
|
Liner material |
CR, F4(PTFE), F46 (FEP), PU, alumina ceramics, etc |
B: intelligent, Lion power, display only, no output |
|
Body/FLG material |
20# carbon steel, SS304, etc |
C: intelligent, 24VDC, display and 4-20mA output |
|
Mounting way |
Flange, coupling, etc |
C1: intelligent, 24VDC, display and with RS485 |
|
Protection grade |
IP65, IP67, IP68 |
C2: intelligent, 24VDC, display and with HART |
|
Power supply |
220V AC, 24V DC |
Case material |
H: Hastelloy, S: 304ss; L: 316L |
|
Analogue output |
pulse,frequency,4-20mA (Optional Hart/MODBUS/RS485/232) |
Liner material |
X: CR, F: PTFE, J: PU |
|
Structure type |
integrated, split (with 10m cable), insert type |
Electrode |
L: 316L, T: Ti, H: Hastelloy; T: Ta |
|
Power consump |
0.65w |
Nos of electrode |
2/3 |
|
Work Enviroment |
Temperature: -25 ºC ~ 60 ºC , humidity: 5% ~ 90% |
Explosion proof |
N: none, H: EXdIIBT6 |
|
Explosion proof |
None / Exdeibmb 11 CT 3- T6 |
Pressure rating |
N: normal, E: customizedhigh pressure |
|
Damper time |
available with 1 ~ 50s |
