| Price: | US $ 600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | A+E 81F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | Water Flow Meter |
| Velocity Range: | 0.2~8 M / S (0.66 to 26.26 Ft / S) |
| Electrode: | 316L, Hc, Hb, Ti, Ta |
| Output: | 4-20mA DC, Pulse, RS485 |
| Pressure: | Max.16 MPa |
| Media Temperature: | Max 150 C |
| Ambient Temperature: | Sensor 80 C, Converter 50 C |
| Power Supply: | 220VAC or 24VDC |
| Grounding: | S.S, Hc, Ti, Ta, Cu |
| Lining Material: | F4, PTFE, F46, Fs, Rubber |
| Accuracy: | ?à0.6-1% |
| Main Application: | Corrosive Liquid/Gas |
| Sensor: | Tube/Flange |
| Type: | Electromagnetic Flow Meter |
| Measuring Media: | Liquid |
| Measuring Principle: | Electrical Principles |
| Size: | Dn 15-800 (1/2" to 31-1/2") |
| Application: | Enviromental, Industrial |

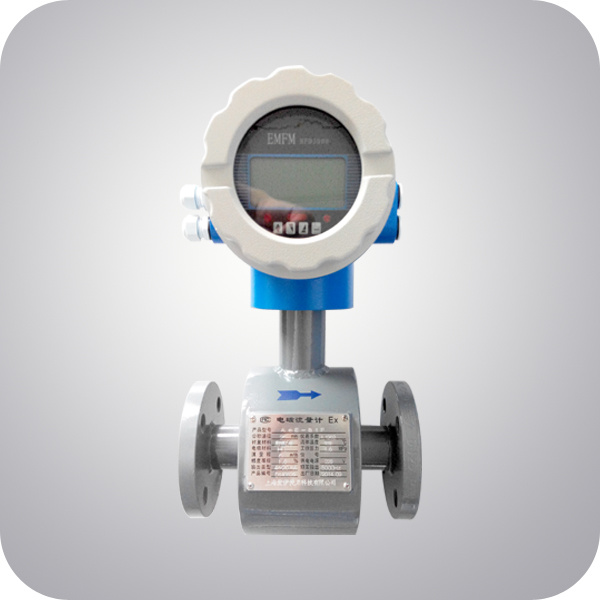

Electromagnetic Water Flow Meter (A+E 81F)
Highlights
--aluminum alloy housing water flow meter, good enclosure.
--unique 6 layer circuit board design, immune to electromagnetic interference.
--fault detective supported like excitation circuit turn-off.
--plug & play terminal block
--damp-proof sealed sensor treatment
--reliable blank pipe inspection
Features
--large choice of liner materials like F4, PTFE, F46, Fs and rubber.
--electric conductivity of medium can be used for detection of product change.
--no additional pressure loss water flow meter.
--no moveable parts and long working life.
--site digital LCD displays instantaneous flow, accumulative flow, flow rate.
--various output method, like 4-20mA, 0-5V, RS485 and pulse.
--compact, split and plug-in types optional.
--change the grounding as the third electrode.
| Item | water flow meter |
| Applicable pipe size | DN 15-800 (1/2'' to 31-1/2'') |
| Applicable media | liquid with conductivity > 5 uS / cm |
| Velocity range | 0.2~8 m/s (0.66 to 26.2 ft/s) |
| Accuracy | 0.5%FS, 1.0%FS |
| Process connection | flange, ANSI / GB / JIS, 1.0MPa, 1.6MPa, 4.0MPa, 16MPa optional |
| Processing temperature | -20 to 150°C, according to lining material |
| Ambient condition | -40 to 80°C, relative humidity <95% |
| Power supply | AC220V, 50Hz / DC24V / battery |
| Display | backlight LCD |
| Operation | 4 light touch buttons |
| Signal output | 4-20mA, loading resistance 750Ω, |
| pulse, 0-3kHz, 5V, | |
| RS485 | |
| Consumption | <8W |
| Cable inlet/outlet | M20*1.5 |
| Protection | transducer IP68, converter IP65 |
| Tube material | carbon steel, stainless steel optional |
| Lining material | PTFE, rubber, polyurethane, F46, Fs optional |
| Electrode material | stainless steel, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum optional |
| Grounding | made into a third electrode, same material with electrode |
| Industries | chemical, environmental, metallurgical, pharmaceutical, papermaking, water supply and drainage, etc. |
Warranty
All AEAD manufactured water flow meters are guaranteed in 12 month since delivery.
