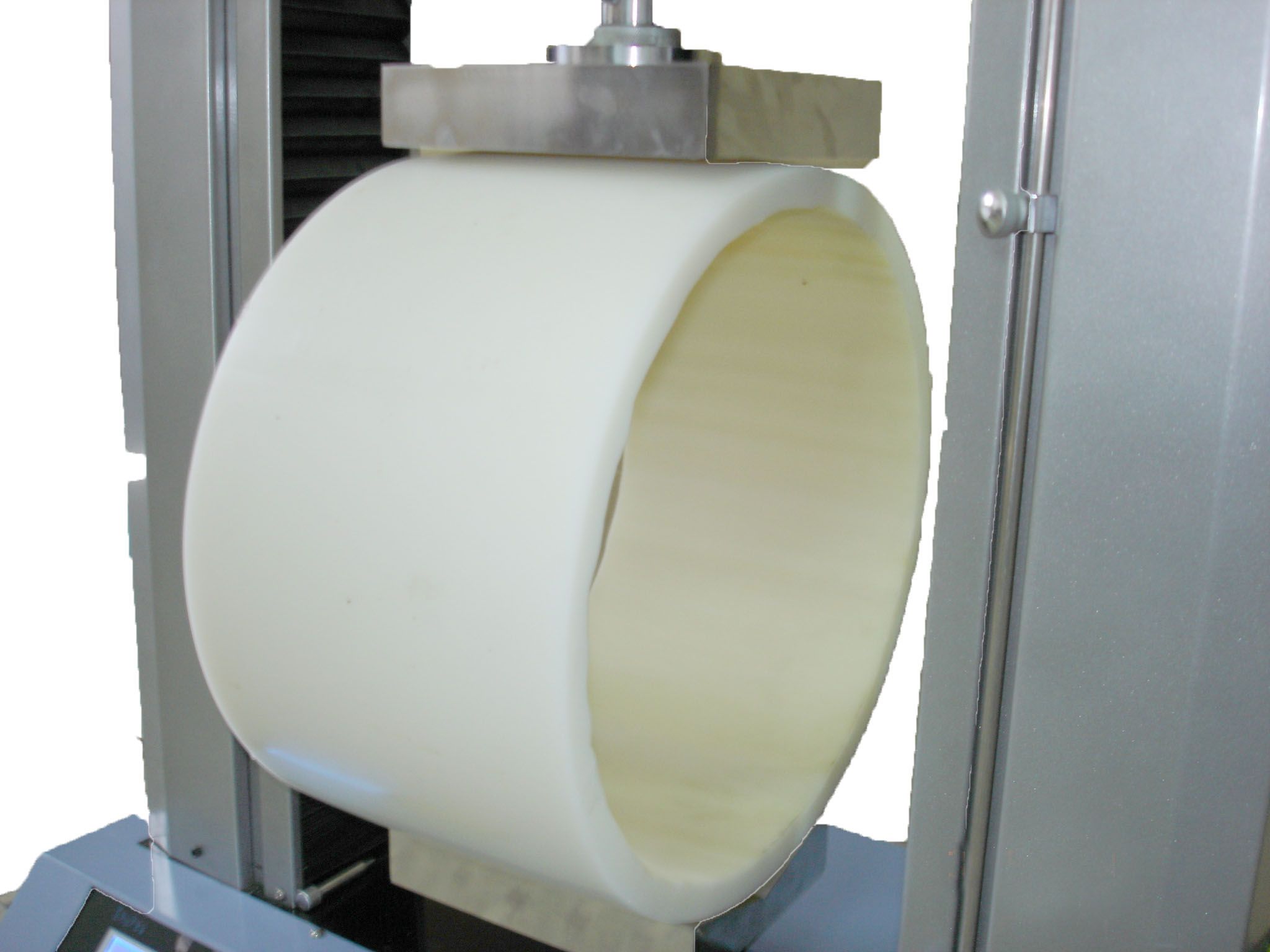

XLS Electron Tensile (Universal) Testing Machine Functional purpose:
It is suitable for performing test, compression, bend, shear peel and tear tests of wire plastic, rubber, cable, waterproof, wrapping and textile fibre.
XLS Electron Tensile (Universal) Testing Machine Features:
1. Clear zero automatically: After the control system receive the order, the testing system clear zero automatically
2. Stop automatically: After test, the machine returns to the home position automatically
3. Test number: May carry out a test 99 samples once
4. Parameter setting: The shape, size, scale distance of the sample and the testing speed can be setting in the menu
5. Display: The testing data and the curve displayed on the LCD
6. Calculate automatically: The machine can calculate the strength, extensibility, yield strength and the modulus of elasticity automatically
7. Various test function: Eight kinds of test function
8. Print function: It can match the printer to print the result
9. Display: 8.4-inch LCD
|
Type |
XLS-10KL |
XLS-20KL |
XLS-50KL |
|
Max load |
10(KN), 1000(kg) |
25(KN), 2500(kg) |
50(KN), 5000(kg) |
|
Diameter of the sample |
400(mm) |
400(mm) |
400(mm) |
|
Travel of the cross beam |
Single measure automatically for 1100(mm) |
Single measure automatically for 1100(mm) |
Single measure automatically for 1100(mm) |
Sensor power value
|
10KN, 5KN, , 2.5KN, 1KN, 500N, 100N |
5KN, 2.5KN, 10KN, 500N, 100N, 25KN, 1KN |
50KN, 25KN, 10KN, 5KN, 2.5KN, 1KN, 1KN, 500N |
|
Resolving capability |
1/250000 |
1/250000 |
1/250000 |
|
Sensor accuracy |
0.003%F. S. /degree |
0.003%F. S. /degree |
0.003%F. S. /degree |
|
Range of testing speed |
0.001-800mm/min(10KN)
0.001-500mm/min(10KN) |
0.001-800mm/min(25KN)
0.001-500mm/min(25KN) |
0.001-800mm/min(50KN)
0.001-500mm/min(50KN) |
|
Return speed |
0.001-800(mm/min) |
0.001-800(mm/min) |
0.001-800(mm/min) |
|
Dimension(L× W× H) |
790× 480× 1460(mm) |
790× 500× 1460(mm) |
790× 500× 1460(mm) |
|
Weight |
35kg |
75kg |
80kg |
Load measures accuracy: When the load measure is 2% to 100% of the sensor load, the accuracy is ± 0.5% of the showed load measure. When the load measure is smaller than the sensor load for 2%, the accuracy is 1% of the showed load measure.
R...O: ± 0.5% or± 1%
|
As the professional manufacturer of non-metal testing machines, GUANGZHOU XIANGLI INSTRUMENT Co., Ltd., is a high-tech company integrated by manufacturing, distribution and relative service as well. Following the whole industry's development road, the company developed large amount of independent property right-owned and high-quality key products, The products are widely used in the fields of national defense aviation and aerospace, in the universities and colleges, the research institutions, industrial enterprises, and the quality inspection organizations. Our products are nation-wide oriented and available all around China, with the reputation of high quality and cheaper price.
The company boots from high-nature technical personnel, depends on advanced technology, learn from testing machine, advanced technology, devote us to non-metal testing machine research and develop. Cooperating in close with many famous institutions and science research departments, that made our products reaching advanced standard. Good service and reliable quality have gained customer high praises.
GUANGZHOU XIANGLI INSTRUMENT Co., Ltd., is based on with artificial capital, supreme principle of customer. Be eager to make progress actively, be bold in making innovations, provide to extensive customer wholeheartedly to have the effect, the high grade service.
