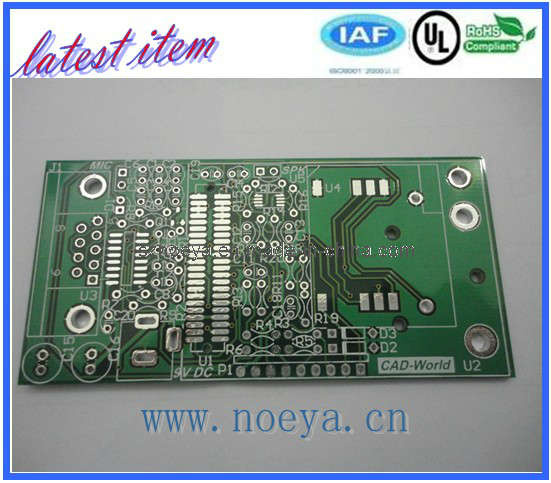

Amplifier PCB supplier:
Technical details:
1)layer count: Double layer(2 layer)
2)material details: 1.8mmFR-4(TG140), 1o finished copper weight
Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
Max board thickness:
3.2mm for 2 layers
3.0mm for 4 layers
2.0mm for 6 layers
3)Hot air finishing, lead free(immersion tin)
4)Min line width/spacing: 0.42mm
5)Min, Hole size(aperture): 0.35mm, hole tolerance: +/-0.05mm
Min. Solder bridge: 0.07mm
Dimension tolerance: +/-0.1mm, circuit characteristic: Simple
6)Outline/profile/contour: CNC Routing, CNC milling
7)Lead time: 5 days for prototypes, 9 days for mass production
8)Certification: RoHS&UL
9)100% E-test: Yes
10)application: GPS
Board size details and panelized details:
Each piece size: 100mm*77mm
Panelized details: None
Advantages: 1) Best quality and attractive price.
2)Best on time shipping
3)with E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
7)Ultra modern manufacturing facility
Main markets:
Argentina and Brazil
Hot-selling time:
Sells well in Mar. 2012 and May, 2011
|
Bare PCB Delivery Time |
|
Layer |
Prototype |
Mass production (Above 30(Square) |
|
1L |
Fast prototype: 12Hours General time: 1-2days |
5-7days |
|
2L |
Fast prototype: 24Hours General time: 3-4days |
7-9days |
|
4L |
Fast prototype: 48Hours General time: 5-7days |
9-10days |
|
6L |
Fast prototype: 72Hours General time: 6-8days |
10-12days |
|
1. Eight years of experience in PCB factory |
|
2. UL, SGS, ROHS, ISO9001, TS16949, IPC-600G class 2 and IPC-6012B class 2. |
|
3. Fast delivery |
|
4. Low price high qualtiy PCB |
|
5. Sample order and small order are acceptable |
|
6. ICT and testing instruction test |
|
7.100% E-TEST Before shipment |
|
8. CNC package for bare PCB |
company availabilities:
|
Compliant |
UL, RoHs, ISO9001-2000 |
|
Standard |
IPC-A-600F, IPC-D-300G, MIL-STD-105D LEVEL II |
|
Application |
Home appliances, electronics, didital camera, LCD TV sets, medical equipments, telecommunication, LED lightings, street light, mobile phone, computer, laptop test equipment and power meter, electrical weighing scale, desk lamp, microphone, spacer, controller, receiver, transmitter, consumer electronics, etc. |
|
Acceptable |
Small quantity and prototypes |
|
Lead time |
5-7days for prototypes, 9-13days for mass production |
|
Available Service |
OEM, 24hrs service for fast prototype |
|
trade terms |
EXW, FOBshenzhen, CIF----------Negotiable |
|
shipping terms |
By ocean, By air, By international express(Fedex, DHL, UPS...) |
|
Package |
innerpackage: vacuum+desiccant outerpackage: Carton |
Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.
Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.
We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.
We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
