Product Specifications
| Prod Model: |
800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manual: |
Electrostatic |
| Type: |
Electrostatic Spraying Equipment |
| Certification: |
SGS |
| Method Type: |
Manual |
| Application: |
Hardware Spraying Equipment |
Product Description

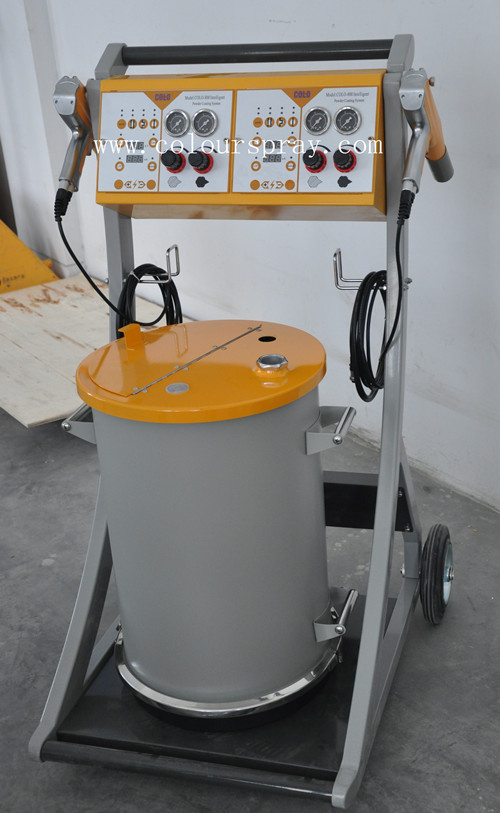

Electrostatic Spraying Machine
Electrostatic powder coating system
This model use the ITW gema optiflex model trolley and hopper
The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.
Character: 2PCS spray guns+2PCS controller, controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts
This machine is suitable for the coating of simple, flat workpieces
This machine is suitable for the coating workpieces with complicated shapes
This application mode is suitable for the over-coating of workpieces
Which are already coated.
Box feed model with original powder box, it is very easy to change color and develop the working efficiency
Technical data:
Electrical data
Mains input voltage: 220V/110V
Operating frequency: 50Hz /60Hz
Powder: 50W
Output voltage (to the gun): 0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type: IP54
Approvals: CE Certification
Pneumatical data
Input pressure: Min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. Water vapor content of the compressed
Air 1.3 G/M³
Max. Oil vapor content of the compressed air 0.1 mg/m³
Dimensions
Carton size: 120X79X73cm
G. W: 65kg
|
input voltage |
110v-240v |
|
|
frequency |
50-60HZ |
|
|
input power |
50W |
|
|
output voltage: |
max. 20v |
peak-peak value |
|
pneumatic control voltage |
24V DC |
|
|
out put current |
max. 0.7A |
|
|
work temperature rang |
-5° C-40° C |
|
Hangzhou Color Powder Coating Equipment Co., Ltd. is leading manufcturer of powder coating equipment in China. Due to the great location, we produce the latest products. "Quality first, innovation and valuable services" is our endless purpose. Thanks to tireless efforts of all staff, we have developed into a manufacturing company specializing in the research, development, production, sales and service of electrostatic powder coating equipment. Our main products are electrostatic spray guns, high pressure modules, circuit boards, famous gun spare parts, and automatic reciprocating machines, spray booth, curing oven, powder coating line. We will rely on our advanced technology, strict quality management system and strong sense of responsibility to make our company become the top one in the industry.
Our machines can spray well in a variety of shapes, which efficiently solves the penetration problems with corners and recesses. Moreover, our machines are easy for operation because of the intelligent design.
We will make unremitting efforts to develop the electrostatic powder coating industry. Due to advanced production and test equipment, high technology, excellent R&D and the efforts of staff, we annually produce more than 5, 000 sets of electrostatic generators, and more than 30, 000 sets of circuit boards, modules, and spray guns. At same time we design and produce kinds of spray booth, curing oven and complete powder coaitng line. Our goods are not only sold in local market, but also successfully exported to Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy, Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries, enjoying a great reputation from different clients.
Welcome guests from all countries to our factory.
