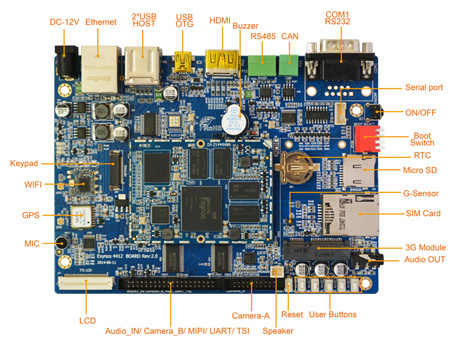

EM4412 simple description:
The EM4412 is a Full Feature Quad Core ARM cortex-A9 Motherboard which provides an ideal platform to test performance and scalability prior to engaging in BOARDCON's quick turn custom design services for a feature specific product design, using Samsung's Exynos4412@ multimedia CPU which is Samsung Galaxy SII's main controller. The EM4412 has the standard I/O including a real-time clock, dual USB interface, watchdog timer, audio support, 24-bit LVDS and TFT flat panel display, HDMI, PWM outputs, RS485 and CAN. Also it provides 3G, WIFI, GPS, 5M pixels Camera, Resistive and Capacitive touch screen tailor made according to your application. The board comes with Android4.2 and Linux3.5 OS. The user can use EM4412 as an embedding controling central, you can 100% concerntrate on your software applications development. Also you can just order the CPU Module, we provide schematic drawing,pin definition and souce code example for you reference such as LCD, GPIO, SD. You make decision for your product. The EM4412 is ideal for vision intersive applications, multi-processor applications, POS, Slot Machine, and Car Mounted systems.
Boardcon offers a full, turn-key development kit including the board and all the specified high-desity breakout cables, debugging cables, and terminal breakout boards as well as sample software and additional support materials. This combined with our highly-trained Technical support Team, greatly decreases your development time and ultimately your time-to-market. To order your turn-key Development Kit today.
Highlights:
* Samsung Exynos4412 ARM Cortex-A9 Quad-core processor, up to 1.6GHz
* 2GB DDR3 RAM
* 4GB EMMC Flash
* 7" / 10.1" resistive / capacitive touch screen
* Android 4.0/4.2.2/4.4.4 , Linux3.5 OS
* Option module: Camera, WIFI, 3G, GPS, G-sensor
Boardcon embedded design established in 2006, is an Original Design Manufacturer dedicated to providing high quality ARM core based industrial Computer-on-Module, Single Board Computer and Evaluation board, Boardcon eigineer has been developing embedded computing solutions for the OEM market over 5 years. The services are hardware design, driver development, BSP porting and BSP development. On the operating system side Boardcon specializes in Windows CE and embedded Linux. Our commitment to excellent products, low prices and exceptional customer support has encouraged our business to flourish in a very competitive marketplace. We offer a wide variety of ARM bassed SBCs, computer -on-module and peripherals that satisfy most embedded project requirements.
Our engineers are also enthusiastic about new projects and take pride in new designs that are on the cutting edge of the embedded marketplace. Custom designs are a large part of our business and, with our experience team of embedded engineers, we can provide our client a custom solution at a price that competes with an in-house design.
What is computer-on-module?
Computer-on-module are tiny single-board computers, designed for attachment as a "component" into a carrier board developed by the user, according to his application-specific needs.
Boardcon's product line comprising computer-on-module based on ARM processor architectures. Each module covers distinct range of price, performance and features, to create a line of comprehensive solutions for the diverse requirements of various industry sectors.
Features and benefits of Boardcon's computer-on-module All-in-one single board computers with CPU, memory and peripherals. Based on ARM processor architectures. Very small size.
NAND Flash Disk, implementing large on-board storage at low cost. Comprehensive software packages, drivers and support for all major operating systems.
Built-to-order manufacturing process. Users order and pay for only those functions actually needed, further reducing the user's costs. Boarcon will continues to expand its computer-on-module product line with additional products and features to meet the customer requirement.
