Product Specifications
| Prod Model: |
SCC-3116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Line: |
Industrial Computer |
| CPU: |
Intel Celeron J1900 Quad-Core Four Thread Processo |
| Memory: |
1*DDR3l 1333MHz SODIMM, Max. 4GB |
| Expansion Card: |
2*Mini Pcie Card |
| LAN: |
2* Gigabit Ethernet Ports |
| Display: |
VGA&HDMI |
| COM&USB: |
6COM&6USB |
| Option: |
3G/WiFi |
| OS: |
Windows 7, Windows XP, Windows XP Embedded, Linux |
| Application Field: |
Industrial Control |
| Processor Type: |
Intel |
| Certification: |
FCC |
| Type: |
Embedded Systems |
Product Description

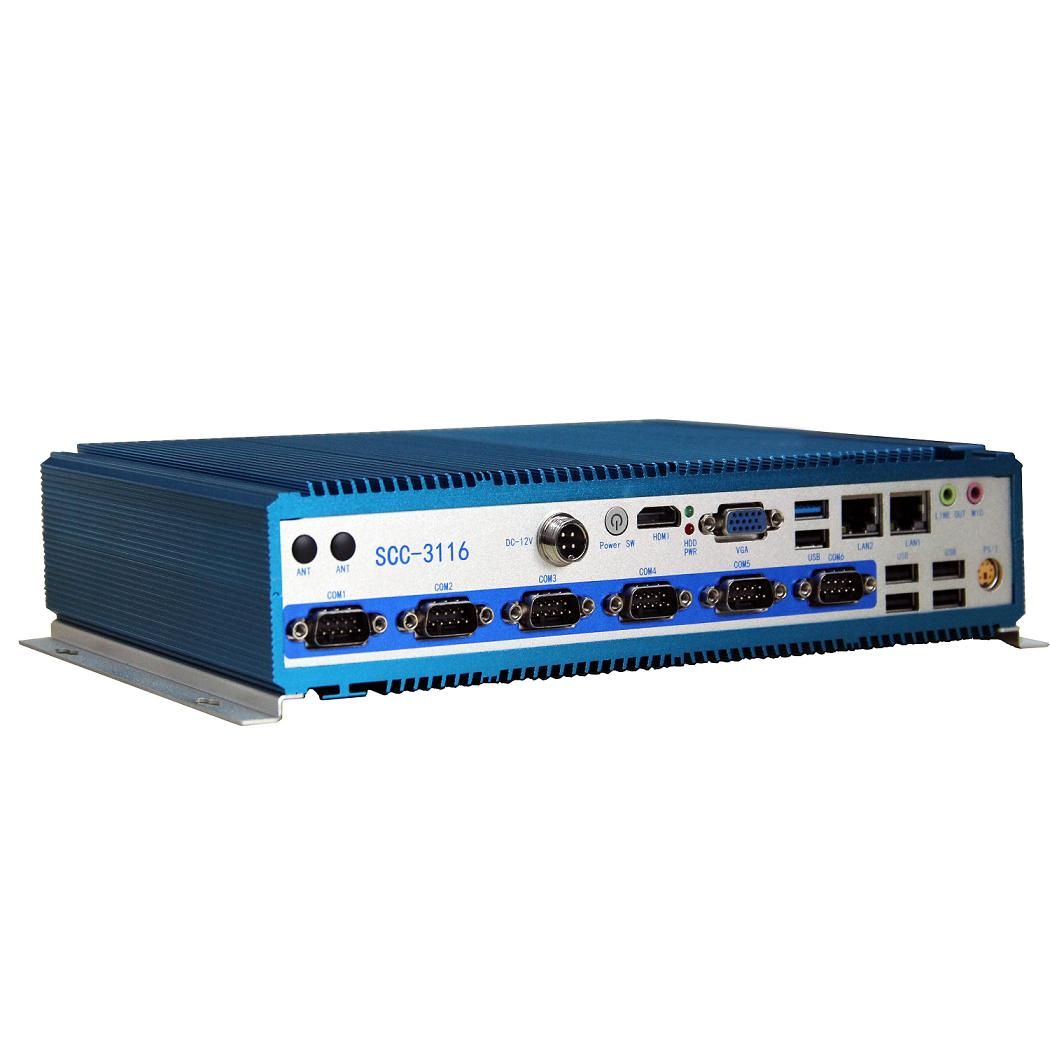

Features:
Ultra-low power ,fanless design
Intel Celeron J1900 , up to 2.41GHz
1*DDR3L 1333MHz SODIMM, Max. 4GB
2*Mini PCIe Card Support WIFI,3G
VGA and HDMI dual display
2*RTL811G Gigabit Ethernet interface
1*SATA2 2.5'' HDD Bay and mSATA dual storage
6*COM/1*USB3.0/5*USB2.0/Audio
DC 12V input
SYSTEM | CPU | Intel® Celerion J1900 Processor 2.0GHz to 2.41GHz, Quad-core four thread CPU 2M Cache, 22nm,TDP10W |
| ARM | 1*DDR3L 1333MHz SODIMM, Max. 4GB |
| EXPANSION | 2*Mini PCIe Card, one is 1*PCIe and USB(with SIM), Support PCIe Expansion WIFI and 3G module,the other 1*SATA2, support Msata disk |
| DISPLAY | VGA,HDMI , Support Synchronous or asynchronous display, HDMI support 4K HD decode or 16 channels decoding |
| M/K | PS/2 |
| LAN | Dual Realtek 8111 10/100/1000Mbps chip,RJ-45 interface*2 |
| SSD | mSATA, 16GB to 512GB |
| HDD | 2.5''HDD Bay, Support 1*SATA2 3GB/s 2.5''HDD |
| COM&USB | RS-232/422/485*2 (jumper setting ), RS-232*4; 5*USB 2.0, 1*USB3.0 |
| Audio | Line-out and Mic |
| System control | 1*Power switch , reset switch x1 |
| LED indicator | 1*Power light,HDD light×1 |
| AUDIO | Mic-in /Phone/Line out |
| LED LIGHT | Power light×1,HDD light×1 |
| WATCH DOG TIMER | Timer system reset/interruption |
| OS | Windows 7,Windows XP,Windows XP Embedded, Linux |
| POWER | DC IN-PUT
VOLTAGE IN-PUT | built-in DC-DC Converter |
| DC 12V |
AC IN-PUT
VOLTAGE IN-PUT | power adapter (option ) |
| 100VAC~240VAC@50~60Hz |
| OPTION | WIFI /3G |
| MECHANICAL | STRUCTURE | aluminum-case, Wrinkle-shape for cooling and ultrathin |
| COLOUR | Silver aluminum+ silver SGCC |
| INSTALLATION | on-wall, desktop installation |
| DIMENSIONS | 268*160*57.6mm |
| ENVIROMNTAL | OPERATION TEMPERATURE |
-10°C ~ 55°C - SSD Without Airflow; -10°C ~ 45°C - HDD With out Airflow |
STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| STORAGE HUMIDITY | 5~90%@40°C,non-condensing |
| VIBRATION | 5 grms / 5 ~ 500Hz / in work status (SSD) |
| 1 grms / 5 ~ 500Hz /in working status(HDD ) |
| SHOCK | 50 g peak acceleration (duration 11ms)(CFD) |
20 g peak acceleration (duration 11ms)(HDD ) |
EMC | CE /FCC A class, UL |
| ORDER INFORMATION |
| SCC-3116 |
| Fanless embedded PC, Intel Atom J1900, VGA&HDMI,2*Gigabit Ethernets/6 COM/ 6 USB/ Audio/PS2/2.5'HDD Bay |
| PA-60DC12 |
| AC/DC power adapter, DC12V/5A 60W |
| WBESITE |
| WWW.JHCTECH.COM.CN/EN |
