Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Capacity: |
400L/600L |
| Volume: |
2.2L/3L |
| Cylinder: |
Steel |
| Service Life: |
15 Year |
| Type: |
Air Breathing Apparatus |
Product Description

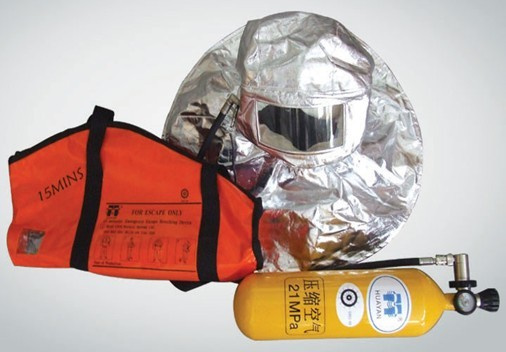

Emergency Escape Breathing Device
Application of Emergency Escape Breathing Device
The EEBD are only used for escaping from a compartment that has a hazardous atmosphere to provide personnel breathing protection. It can not to be used for fire fighting, entering oxygen deficient voids or tanks, or worn by fire fighters.
The hood is a flame resistant head cover which completely covers the head, neck, and may cover portions of the shoulders, there is a clear window on it.
There is a pressure gauge on the cylinder to indicate the cylinder pressure. The cylinder pressure of EEBD is not indicated by a pressure gauge during storaging.
Specifications of Emergency Escape Breathing Device
Model | THDF10-1 | THDF15-1 |
| Cylinder Volume | 2.2L | 3L |
| Working Pressure | 21 MPa | 21 MPa |
| Air Deposit | >400L | >600L |
| Supply Airflow | ≥35 L/min | ≥35 L/min |
| Duration Time | ≥10min | ≥15min |
| Weight | ≤6 kg | ≤8.6 kg |
| Service Life | 15 year | 15 year |
| Approvals | CCS/EC | CCS/EC |
