Product Specifications
Prod Model: |
E4020N |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Keypad: |
20 Large, Hard Rubber Keys, Including 4 Function |
Communications: |
USB and Serial Connectivity |
Power Supply: |
Serial Port 6-16V DC 0.5A USB: 5V DC +/-5% |
Magnetic Card: |
Track 1/2/3 |
Product Description

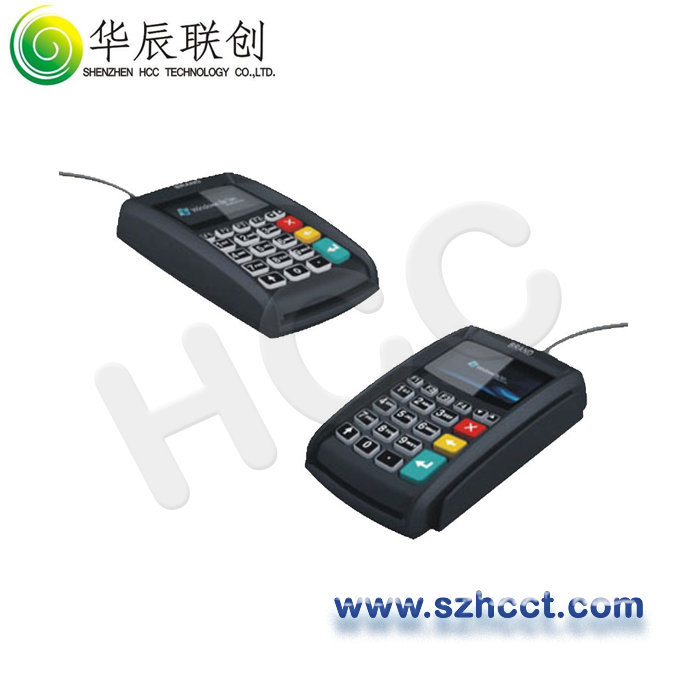

EMV &PCI 3.0 Black Color E-Payment Pinpad--E4020N
General
MIS-POS and pin entry device with card readers of different modes. Can be connected with POS, ECR, PDA CRT cash register, or telephone POS terminal to enhance transaction security.
Feature
*Ergonomic design with large screen and keys
*Integrated PIN pad, magstripe card and IC card reader
*Works with PC, ECR, PDA or POS
*Handheld or desktop usage
*A single unit to complete the whole transaction process
Display | 128 x 64 pixel backlit LCD graphical display, 4 lines and up to 21 characters, large font |
Keypad | 20 large, hard rubber keys, including 4 function keys |
Communications | USB and serial connectivity |
Power supply | serial port 6-16V DC 0.5A USB: 5V DC +/-5% |
Magnetic card | Track 1/2/3 |
Contact IC Card | ISO7816 1, 2, 3; EMV Level I, II; PBOC Level I, II |
Security | PCI 3.0 Approved, Master/Session and DUKPT key management |
Dimensions | 146 mm*79 mm* 30 mm* (L*W*H) |
Operating temperature range | 0 - 40º C (32º to 104º F) |
Operating humidity | 5% - 90% |
