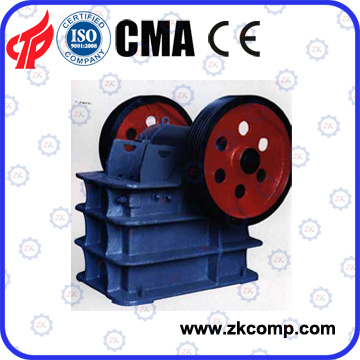

Jaw crusher is widely used for crushing various materials like lime stone, granite, calcite, dolomite, manganese ore, iron ore, gypsum, calcium carbonate, feldspar etc with crushing compression strengh no more than 320MP. Used as primary crushing part, the Jaw Crusher can be used in the area of mining, construction, road and railway building, metallurgical industry, chemistry industry etc.
Working Principle of Jaw Crusher:
The Power Motor transmits power through Belt, drives the Moving Jaw Plate do periodic motion to the Fixed Jaw Plate surround the Eccentric Shaft. The angle between Toggle Plate and Moving Jaw Plate increases when Moving Jaw Plate moves up. So the Moving Jaw Plate closes to the Fixed Jaw Plate. The stuff will be crushed in this process. The angle between Toggle Plate and Moving Jaw Plate decreases when Moving jaw Plate moves down, the Moving Jaw Plate moves away from Fixed Jaw Plate by the pulling of Rod and Spring, the crushed material will be discharged from the Discharge Opening.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
| Model | Feed Opening (mm) | Max. feeding size (mm) | Adjusting range of discharge opening (mm) | Capacity (t/h) | Rotation speed of eccentric shaft (r/min) | Motor power (kw) | Total weight (t) | Dimensions (L*W*H)(mm) |
| PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070*2000*1920 |
| PE-600*900II | 600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
| PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660*2430*2800 |
| PE-800*1060 | 800*1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740*2430*2800 |
| PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
| PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-350 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
| PE-1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1000 | 180 | 280 | 122 | 5160*3660*4248 |
| PE-1800*2100 | 1800*2100 | 1500 | 300-400 | 600-1200 | 160 | 400 | 150.6 | 6210*4013*4716 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
