Product Specifications
Prod Model: |
EHSS526 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Type: |
Light Section Steel |
Forming: |
Hot-Rolled Steel |
Colored Corrugated Sheet With Insulation: |
4.5-12m |
Span Of Steel Structure Building: |
6-36m |
Doors: |
Sliding Door or Electric Rolling up Door |
Windows: |
Sliding and PVC or Aluminium Alloy Material |
Roof And Wall: |
Colored Corrugated Sheet with Insulation |
Material: |
Steel Structure |
Usage: |
Workshop |
Certification: |
ISO |

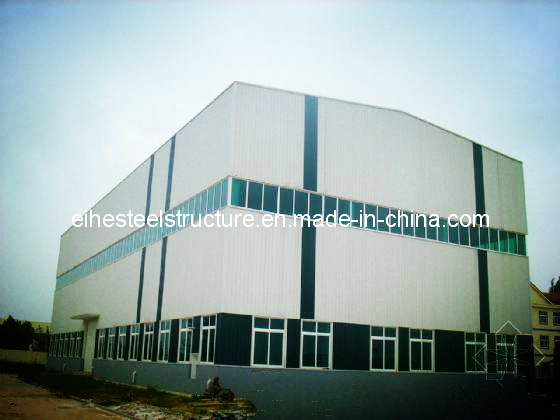

Product Description
QingDao EIHE Steel Structure Co., Ltd is located at Jimo High-tech Zone in Qingdao Shandong province China and founded in 2005, covering an area of 50, 000 square meters with integration of design, production and installation, providing customers with multi-directional and whole process service for various types of housing construction including steel structure and civil engineering. Our company was firstly awarded by Shandong Provincial Department of Construction as "Class-B qualification for steel structure engineering contractor", then passed ISO9001 in 2006. We have been appointed as enterprise for steel structure manufacture and have unique competitive advantages in light steel structure building market.
-----------------------------------------------------------------------------------------------------------------------------------------------
Product Description
The advantage of light prefabricated house
1. High stability, flexible design, appearance beautiful,
2. Prefab house adopt galvanized open web steel as structural steel frame
3. All materials have a good fireproof and heat insulation performance
4. Eight skilled workers can finish installation of 150 SQM in 15 days
5. Easy to assemble and dissameble for several time without damage and not bring out building debris
6. Low repair and maintenance costs
7. High- strength, windproof and reliable load- bearing steel structures
8. Construction period short, energy conserving.
9. All the components of villa are prefabricated before leaving factory, with the advantage of easy erections
----------------------------------------------------------------------------------------------------------------------------------------------
Main structure: Welding H steel(Standard according to clients)
Purlin: C section channel or Z section channel
Roof cladding: Sandwich panel or corrugated steel sheet with fiber glass wool coil
Wall cladding: Sandwich panel or corrugated steel sheet
Tie rod: Circular steel tube
Brace: Round bar
Column bracing and transverse brace: Angle steel or H section steel or steel pipe
Knee brace: Angle steel
Roof ridge: Corrugated steel sheet
Wrapping cover: Color steel sheet
Roof gutter: Color steel sheet
Rainspout: PVC pipe
Doors: Sliding sandwich panel door or metal door
Windows: PVC or aluminum window
Connecting: High strength bolts
----------------------------------------------------------------------------------------------------------------------------------------------
Our service:
-Quotation according to yours drawing
-Design and quotation according to yours requirements
-Delivery the entire steel building to you by containers;
-Offer all the detailed drawings for installation and fabrication.
----------------------------------------------------------------------------------------------------------------------------------------------
Name |
|
Specification |
Standard |
Length (m): |
30m |
Width(m): |
6m |
Heigth(m): |
3m |
Roof slope: |
slope is 1:10 to 1:5 |
Main steel structure frame |
Column |
steel square pipe, Q235 |
Beam |
Welded H steel/H steel/C type steel/Q235/paint or galvanized |
Purlin |
C type steel/Q235/galvanized |
Window |
PVC sliding window |
Ceiling |
PVC ceiling /mineral wool acoustic panel/aluminium buckle panel/ |
Options |
Elevation floor |
Design based on local weather condition. |
Canopy |
color steel sheet or color steel sandwich panel canopy |
Door |
compound wooden door, security door, aluminium alloy door |
Electrical accessories |
According to relevant national norms(220V, 50Hz, with lamp, switches and multi-function sockets. ) |
Water plumbing accessories |
Supply plan, design and construction according to relevant national norms |
Sanitary ware |
Supply according to customer needs |
Furniture and electric appliance |
Supply according to customer needs |
Design technical data |
Roof live load |
0.5KN/sqm |
Roof dead load |
0.3KN/sqm |
Floor dead load |
0.5KN/sqm |
Floor live load |
2KN/sqm |
Wind load |
12degree, 120km/h(strengthen the steel frame when the wind is bigger than this data) |
Earthquake resistant intensity |
8 degree |
Used for temperature |
Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25) |
Installation tools |
electric drill, electric hammer, spanner, screwdriver, pulling rivet etc, house installation need electric power. |
Transport |
Container |
one 40' container load 120~140Sqm house body material |
Qingdao Eihe Steel Structure Co., Ltd. is a company specializing in designing, producing, selling steel structures, steel building, prefabricated house, container house, light steel villa, steel sandwich panel, profiled steel steel tiles and so on. What's more we get SGS certification and ready to offer good service to our clients all the time.
As a sunrise enterprise in steel structure industry, we adhere to the strategies "product professionalization, quality improvement, production scalization, and reform innovation", work hard and go all out to open up a new world. We firmly believe in that EiHe people will drive company more robust and powerful with the unique spirit and mind.
Our business philosophy is "Trust, Customer first", we take customer needs and customer satisfaction as the eternal pursuit, establish idea of whole process and full-service, and commit to serve customer before tender, be responsible for customer during construction and satisfy after finishing in order to achieve "win-win" goal.
Sincerity can make even metal and stone crack, the future EIHE Steel Structure does not only belong to China, but also belong to world. We will always continue to go beyond, seize the pulse of the times and follow the change in industry tightly. Warmly welcome you with an open attitude. Eihe Steel Structure would like to deliver sincere service to customers around the world...
