EOCR-SS with CT
Electronic Overload Relay
2 Integral Current Transformers
Electronic Shear-pin Function
Independently Adjustable Starting Trip Delay
(D-Time) & Operating Time (O-TIME)
Features
Phase Loss Protection
Typical Wiring
Compact Design
Multiple Protection Functions
Wide Current Adjustment Range (10: 1)
Ammeter Function
Trip Indication LED
High Accuracy
Manual Instantaneous Reset
Electrical Remote Reset
Test Function
Ambient Insensitive
Low Energy Consumption
Fail-safe Operation (No Volt Release)

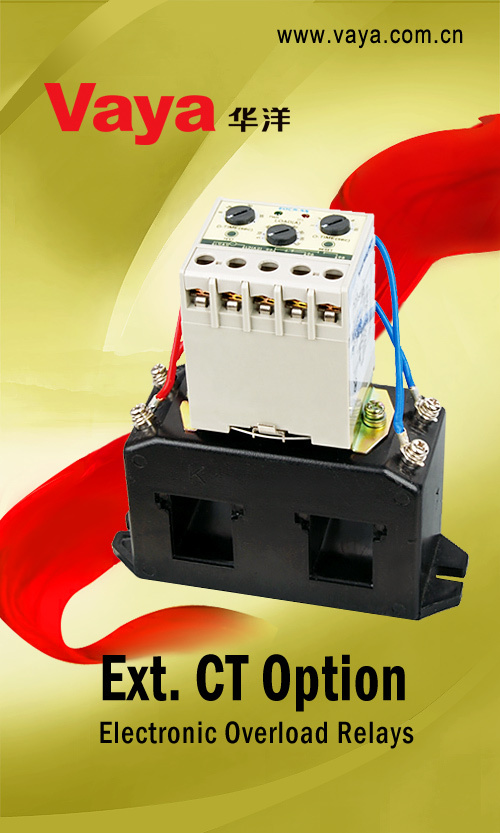

EOCR-SS with External CT
Ordering option-05 type of each model fitted to an external current transformer can achieve higher ampere ranges (Ext. CT option)
|
Protection |
|
|
Protective Item |
Operating (Trip) Time |
|
Over-current |
O-TIME |
|
Phase Loss |
O-TIME |
|
Locked Rotor |
O-TIME + D-TIME |
|
|
TYPE |
Current Ratio
of Ext. CT |
Current Setting
Range |
Ext. CT
Option |
05 |
- |
0.5 - 6A |
|
100 |
100: 5 |
10 - 120A |
|
200 |
200: 5 |
20 - 240A |
|
300 |
300: 5 |
30 - 360A |
|
400 |
400: 5 |
40 - 480A |
|
500 |
500: 5 |
50 - 600A |
|
600 |
600: 5 |
60 - 720A |
